Review 500 mb Height Maps and the Large-scale Temperature Pattern

This page is a review of 500 mb height maps. It is nearly the same as the page covered in the first week of classes. The only difference is that the example maps are from the late fall and winter season, not the summer monsoon season.

Introduction

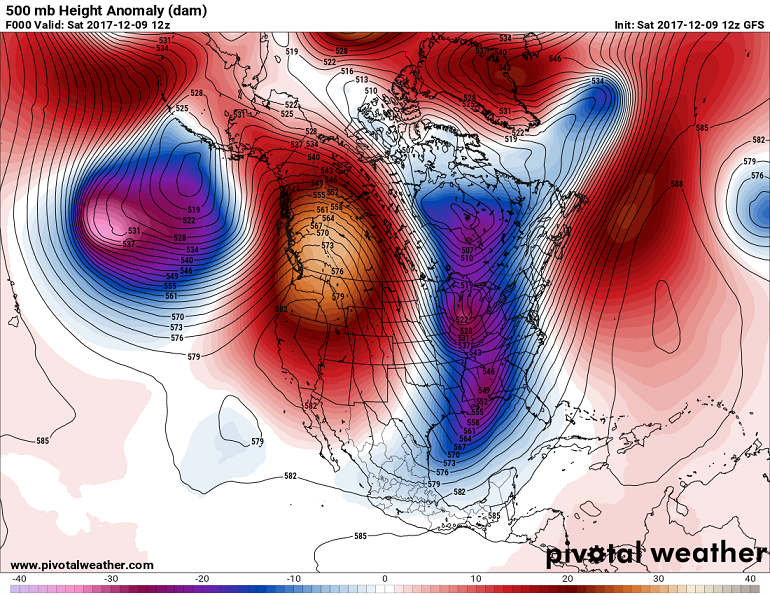

500 mb height map at 12Z on December 9, 2017. Height contours on this map are labeled in decameters (dam). Simply add a zero to the end of each number to get the 500 mb height in meters (m). For example 576 dam = 5760 m. The color shading shows the height anomaly in dam, which is the observed 500 mb height minus the average 500 mb height for each location.

With experience one can easily visualize the large scale weather pattern by looking at the 500 mb height pattern. This is nice when looking at computer-generated forecast maps of the 500 mb height pattern predicted for some time into the future to get an idea of what the computer model predicts the future weather to be. We will look at forecasts of the 500 mb height pattern during the semester. The sections below begin to describe how to read and interpret the contour pattern on 500 mb height maps. The next section describes the time stamp information on the maps. Following that a quick link to a weather forecast of 500 mb height maps is provided.

Universal Time, Time Stamp on Weather Maps

All weather observations taken around the Earth need to be coordinated to a common time. The world's time standard is called Coordinated Universal Time (UTC). It is important that all weather observations use UTC so that the state of the atmosphere can be measured all around the globe at the same time. The measured, or observed, state of the atmosphere is used as a starting point for weather forecast models. Historically, UTC was set to the timezone for the the 0° longitude line, which includes the city of Greenwich, England, and for this reason it is sometimes still called Greenwich Mean Time (GMT). The military uses the name "Zulu Time" or "Z Time" to denote this standard time, where Zulu is the military phonetic name for the letter "Z", which in this case stands for the time at the Zero meridion (0° longitude). In specifying time, UTC, GMT, and Z all mean the same thing. Z time also uses the 24 hour military clock, e.g., 00Z is midnight, 06Z is 6 AM, 12Z is noon, 18Z is 6:00 PM, and 23Z is 11:00 PM.

Most of the weather maps and charts that we will have a military-Zulu timestamp that indicates the standard time for which the map or chart is valid. Look at the 500 mb height map shown above. The map time is indicated after "Valid:" in the upper right hand label. This can be read as Saturday, December 9, 2107 at 12Z. 12Z indicates the hourly UTC time, which is noon. You should realize that the local time in your location will be different from UTC time that is shown on the maps (unless you live in the time zone that includes Greenwhich, England). You can determine your local time based on the time offset in hours between your location and UTC time. Go to the link timeanddate.com to find the time offset between your location and GMT. (Note. The link is set for North American cities, so you will need to switch to another region if you want the time offset for other parts of the world.) For example, the time offset listed for Tucson, AZ is -7 hours. Thus, the local time in Tucson is 7 hours earlier than the time stamped on a 500 mb height map. For the map above, 12Z is 12 noon UTC. The local Tucson time is 7 hours earlier, which is 5 AM on December 9. One tricky item is that moving back 7 hours may change the local time to the previous day. For example 00Z is midnight UTC. The local time in Tucson is 5 PM on the previous day, which is determined by counting back 7 hours from midnight.

Quick Link to a Weather Forecast Movie

Here is a link to a recent forecast loop of 500 mb height maps. The link should open in a new tab or window. Use the video control buttons above the maps to play the forecast movie or move frame by frame. Notice how the valid time for each map image changes. The 3 digit number after the F indicates the number of hours into the future for which the forecast map is valid. For example "F120" means that the map is a forecast for 120 hours (5 days) after the model started running. For now, just go through this exercise of looking at some forecast maps. If you are interested you may wish to further explore the weather products available from the Pivotal Weather site. Forecasts from several weather models are available.

Reading the 500 mb Height on Maps

The contours on the map are actually the altitude of the 500 mb pressure surface in meters above sea level (mb stands for millibars, which is a unit for measuring pressure, just like meters is a unit for measuring distance). The average air pressure near the ground at an elevation of sea level is about 1000 mb (you should remember this number), and since air pressure decreases as one moves upward in the atmosphere above the ground (you should remember this as well), at some altitude the air pressure will fall to 500 mb. At the top of the atmophere the air pressure is zero. The height above sea level where the air pressure is 500 mb is simultaneously measured at many locations around the globe by sending instrumented weather balloons upward. The data from around the world is collected and maps of the current 500 mb height are generated. Computer weather forecast models predict the future pattern of 500 mb heights. The actual pattern of the 500 mb heights changes (evolves) in both time and space. A given 500 mb height map is a snapshot of the 500 mb height pattern at the time specified on the time label on the map. The pattern of the 500 mb heights can be used to interpret weather conditions at the surface.

The first step is to be able to determine the 500 mb height at all points on a 500 mb height map. The map from December 9 is shown again below. Four points, a, b, c, and d have been marked on the map.

Same 500 mb height map as shown above, but with labeled points a, b, c, and d

The height contours on a 500 mb map will generally be in the range from 4600 - 6000 meters above sea level. The labeled contours on the map above are in units of decameters (1 decameter = 10 meters). Just add a zero to the labeled contours for the 500 mb height in meters. The contour interval (height difference from one contour line to the next) on the 500 mb height map shown above is 3 decameters (abbreviated as 3 dam) or 30 meters (abbreviated as 30 m). Contour maps of 500 mb height are interpreted in the same way as topographic maps of ground surface elevation. Every point on the same contour line has the same 500 mb height. For example, locate the 576 dam contour line on the map above. This line snakes across the map. It is in the central Pacific Ocean on the left side of the map. Moving from left to right (from west to east), the 576 contour lines swings northward into southern Canada, just north of Washington state, then curves southward across the United States through the state of Texas and into Mexico and the Gulf of Mexico. The 576 contour lines then swings back toward the north, cutting through the state of Florida. Every location on this line has a 500 mb height of 5760 meters above sea level. Point a is on the 576 dam contour line, thus the 500 mb height at point a is 5760 meters. Above (or generally north) of the 576 dam line, the 500 mb heights are lower than 5760 meters, and below (or generally south) of the 576 dam line, the 500 mb heights are higher than 5760 meters. Point b is located right on the 543 dam line, which means the 500 mb height at point b is 543 dam or 5430 meters above sea level. Point c marks the position of Tucson. Point c is located between the 582 dam and 579 dam contour lines, which means the 500 mb height in Tucson between these two values. Since Tucson appears to be slightly closer to the 582 dam line, we can estimate that the 500 mb height is 581 dam (or 5810 meters) above sea level over Tucson. Point d is located at the center of a closed contour. Closed contour lines literally close onto themselves, often forming irregularly shaped circles or ovals. In this case, the closed contour line around point d is not labeled with a 500 mb height. It is fairly common to plot 500 mb height maps without showing height labels on every contour. In most cases, it is relatively easy to determine the value of unlabeled contours. We know the contour interval on this map is every 3 dam. Notice that the 500 mb height is getting lower as you move toward the closed contour and point d. Thus, the unlabeled closed contour around point d is 516 dam, which is 3 dam lower than the adjacent contour line labeled with 519 dam. The 500 mb height at point d must be between 513 and 516 dam. It is lower than 516 dam, since it is on the lower height side of the 516 dam closed contour, but it must be higher than 513 dam, which would be the next lower contour line.

The Relationship Between the 500 mb Height Pattern and Air Temperature

We will now use the 500 mb height contour pattern to estimate the pattern of air temperature. The height of the 500 mb surface is related to the temperature of the atmosphere below 500 mb -- the higher the temperature, the higher the height of the 500 mb level. In other words, the 500 mb height at any point on the map tells us about the average air temperature in the vertical column of air between the ground surface and the 500 mb height plotted at that point. The height pattern tells us where the air is relatively cold and where it is relatively warm (see 500 mb side view.) As a vertical column of air warms up (temperature increases), it expands upward, which raises the 500 mb height. Conversely, as a vertical column of air cools down (temperature decreases), it compacts downward, which lowers the 500 mb height. Therefore air pressure decreases more slowly as you ascend through a warm column of air, compared to a cold column of air . (See Figure showing air expands when warmed and contracts when cooled).

Consider what the 500 mb height contour pattern would look like if air temperatures decreased steadily from the equator toward the north pole. (Note this is what you might guess based on the fact that the Sun's heating is strongest toward the south and weakest toward the north.) In that case the height contours would be concentric circles around the north pole with the highest heights to the south (toward the equator). While this is generally true (e.g., the general decrease in 500 mb height from south to north depicted on the map above), the actual pattern at any given time is wavy (e.g., as on the map above). Where the height lines bow northward (a ridge), warm air has moved north; and where the height lines bow southward (a trough), cold air has moved south. Therefore, in general warmer than average temperatures can be expected underneath ridges and colder than average temperatures can be expected underneath troughs (See Figure). The more pronounced the ridge (or trough), the more above (or below) average the temperatures will be.

The terminology "trough" (pronounced trôf) and "ridge" is related to the fact that the contour lines often look like waves. A "ridge" is the high point of a wave, and a "trough" is the low point of a wave. A simple diagram is shown below on the left. The figure on the right shows the 500 mb height map for December 9 with the position of a trough and ridge marked.

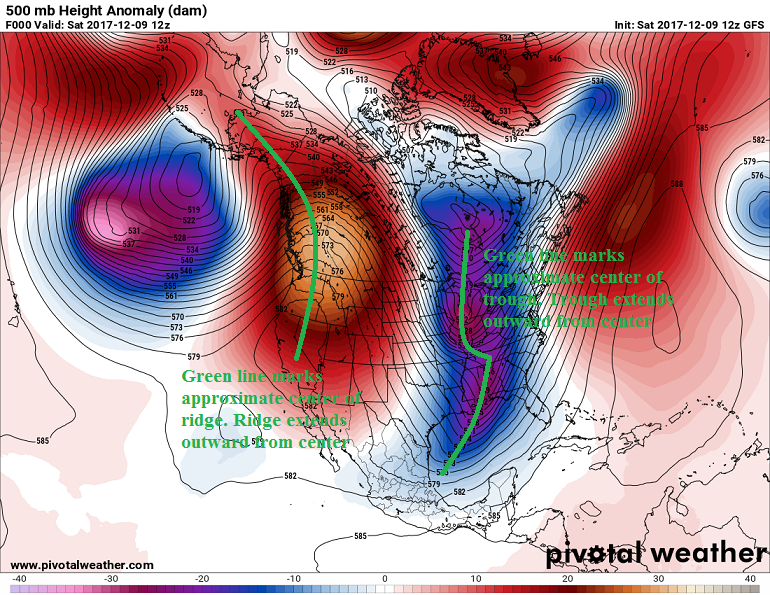

Idealized 500 mb height pattern. The 500 mb height pattern is commonly wave-like. High points in the waves are called ridges and low points in the wave are called troughs. Generally ridges correspond with relatively warm air temperature, while troughs correspond with relatively cold air.

Same 500 mb height map shown above for 12Z on December 9, but with center of a trough and ridge marked.

One other feature in the 500 mb pattern worth pointing out are closed contours. A closed contour line is one which closes in on itself, often making a circular or oval shape. There are both closed lows and closed highs. A closed low on a 500 mb height map is a region of low heights around which one or more closed height contours are drawn. A closed low indicates a pool of colder air surrounded by warmer air. Depending of the strength of the closed low there can be more than one closed contour line encircling the center of lowest height, which is sometimes marked with and 'L' on the maps. Closed lows are often, but not always, associated with a trough. There are also closed highs, which are centers of locally high 500 mb height surrounded by one or more closed contours. A closed high indicates a pool of warmer air surrounded by cooler air. Depending of the strength of the closed high there can be more than one closed contour line encircling the center of highest height, which is sometimes marked with an 'H' on the maps. Closed highs are often, but not always, associated with a ridge. Closed highs generally indicate warm and fair conditions. The 500 mb height map for December 9, 2017 is shown again below with the centers of 3 closed lows and one closed high marked in green. It is relatively easy to determine that the two most northerly closed centers marked on the map are closed lows (the ones north of the continental United States). This is because there are multiple closed contours and the 500 mb heights increase as you move away from the centers. It is a little more difficult to determine that the closed contour over the western United States is a closed high and that the closed contour in the Pacific Ocean off the Mexican Baja coast is a closed low since there is just a single closed contour. These are discussed below the map. However, the closed high can also be identifed because it is associated with a ridge.

Same 500 mb height map as shown above, but with closed lows and highs labeled. Green L's are used to denote the center of closed lows, while a green H is used to denote the center of a closed high.

At first, some students have trouble distinguishing closed lows from closed highs. Start at the center of a closed contour. As you move away from the center, determine if the 500 mb heights are increasing (a closed low) or decreasing (a closed high). If there are multiple closed contours around the center, then it is quite easy to tell if the heights are getting larger or smaller as you move outward. For a single closed contour, it can be more difficult to tell. Continue moving outward past the closed contour until you hit the next contour line. For closed lows, you should be able to cross an adjacent contour line that has a higher height than the closed contour line, and you should not be able to cross an adjacent contour line that has a lower height than the closed contour. For example, look at the closed low over the Pacific Ocean off the Mexican Baja coast marked with a green L on the map above. There is just a single closed contour. Start at the L in the center and move outward. You cross the 579 dam closed contour. Continue moving outward until you cross an adjacent contour line. The next lines you can cross are 579 and 582 dam. Since one of these contours is higher than the single closed contour, this must be a closed low.

For closed highs, you should be able to cross an adjacent contour line that has a lower height than the closed contour line, and you should not be able to cross an adjacent contour line that has a higher height than the closed contour. For example, look at the closed contour that is centered over the western United States and marked with a green H at the center on the map above. There is just a single closed contour. Start at the H in the center and move outward. You cross the 582 dam closed contour. Continue moving outward until you cross an adjacent contour line. The next lines you can cross are 579 and 582 dam. Since one of these contours is lower than the single closed contour, this must be a closed high.

Monthly Average 500 mb Heights

Using 500 mb Height to Estimate Local Temperature

Large scale features like troughs and ridges provide a look at the general temperature pattern, i.e., cold in troughs and closed lows, warm in ridges and closed highs, and near average in flat height patterns without pronounced troughs and ridges. If you want to make a specific temperature forecast for a given location, like Tucson, you should compare the 500 mb heights from a current or forecast map to the long-term average or "climatological" 500 mb heights for that day. Long-term average maps of 500 mb heights over the United States for each month are provided in the section above. For a given location and time of the year, if the 500 mb height on the map is close to average, then the temperature is expected to be about average. If the 500 mb height is lower than the average height, then lower than average temperatures are expected. If the 500 mb height is higher than the average height, then higher than average temperatures are expected. The further the 500 mb height is away from average the more the temperature is expected to be away from average. Generally speaking, when 500 mb heights are within about 30 meters of average expect near average temperature, when 500 mb heights are 40-80 meters above or below average, expect moderately above or below average temperature, and when 500 mb heights are 100 or more meters above or below average, expect well above or below average temperature. For example, if you compare the actual (measured) 500 mb height over Tucson for a given day (say January) to the average 500 mb height, which is about 5680 meters for Tucson based on the January map above, you can estimate whether or not the air temperature for the day will be above average, below average, or near average. Similarly, if you compare a forecast of the 500 mb height over Tucson (from a weather forecast model) to the average, you can determine if the model is predicting above or below average 500 mb height and temperature.

Keep in mind that this is a way to estimate the local temperature relative to the average air temperature for that location and time of year. The 500 mb height by itself does not tell us what the exact air temperature will be at the ground surface since it is actually related to the average temperature between the ground and the 500 mb height level. In addition, there are many local factors that go into determining the surface air temperature, such as the sun angle (which is more direct for locations closer to the equator), type of ground surface (desert rock and sand warms more quickly than wet soils), amount of water vapor in the air (dry desert air warms more easily during day and cools more easily at night compared with more humid air), and other factors. Thus the same 500 mb heights over two locations does not mean those two places are expected to have the same near ground air temperature. The best we can do is say whether or not the local temperature is expected to above or below the local average for that day. Returning to the example posed in the last paragraph. Suppose on January 15, the 500 mb map shows that the 500 mb height over Tucson is 5750 meters above sea level. Since this is higher than the average for Tucson in January, which is 5700 meters, then we expect the the air temperature in Tucson to be above average for the day. You could then look up the fact that the average high temperature for Tucson in mid January 66°F. Based on the 500 mb height, you expect a warm day, with a high temperature above 66°F.

Here is a link to the current 500 mb height pattern. Notice that the 500 mb height contours are labled with 3 digits instead of 4 digits as seen on the other maps we have looked at. On some maps the last zero in the 500 mb height is not displayed on the contour lines (in other words the units on the contour lines are in decameters instead of meters). Just realize that 500 mb heights will be in thousands of meters above sea level, not hundreds of meters. It is expect that you can estimate the 500 mb height over Tucson or any other point on the map based on the contour pattern. You should also be able to determine if the current 500 mb height is above or below the long-term average 500 mb height for this month.

500 mb Height Anomaly Maps

In order to make comparisons to the average easier, most of the 500 mb height maps that we will use in this class directly show the difference between the 500 mb height plotted on the map and the long-term average 500 mb height for that location. Scroll up to the first map shown on this page, which is for 12Z on December 9. The labeled contour lines show the 500 mb height pattern at the valid time marked on the map. The color shading, with the color key at the bottom, shows the 500 mb height anomaly, which is defined as the 500 mb height on the map minus the average 500 mb height at each location. Positive height anomalies, which are shown using red and orange colors, indicate locations where the 500 mb height is above average. In these areas, above average temperature is expected. The more above average the heights, the more above average is the expected temperature. Negative height anamolies, which are shown using blue and purple colors, indicate locations where the 500 mb height is below average. In these areas, below average temperature is expected. Notice that in general, below average heights are associated with troughs and closed lows and above average heights are associated with ridges and closed highs as expected.

Remember that troughs and ridges are defined based on the shape of the contour pattern, not based on the height anamoly. Thus, it is possible for there to be above average heights in troughs and below average heights in ridges, though not common. If available, it is best to consider the height anamoly, rather than just the positions of troughs and ridges, when estimating the temperature relative to the average temperature for a given location. As an example, consider Tucson, which is marked by point c on one of the December 9 maps above. Based on the color shading for height anomaly, the height in Tucson was about 10 decameters (100 meters) above average and well above average temperature is expected. This can also be determined by comparing the 500 mb height over Tucson, which is about 5810 meters, with the average 500 mb height for the month of December, which is about 5720 meters based on the December 500 mb height climatology (long-term average).

500 mb height anomaly maps are a great way to visualize the general large-scale temperature and weather pattern. We will often use the maps to estimate what the air temperature will be like just above the ground surface where we live. Before moving forward, a few potential problems with this method will be pointed out. The 500 mb height tells you about the average air temperature in the vertical column of air between the ground surface and where the measured air pressure is 500 mb, which is 4.6 - 6.0 km (2.9 - 3.8 miles) above sea level. Often this provides a good estimate of how warm or cold the air temperature is near the ground where we live. However, the vertical column of air from ground to 3 miles above sea level does not have to be uniformly warm or cold. There can be smaller (in vertical extent) layers of relatively warm air and relatively cold air. Sometimes there will be shallow (small in vertical dimension) layers of warm or cold air just above the ground. In these cases, the corresondence between the 500 mb height and surface air temperature will not work as well. In addition, factors like the sun angle, cloud cover, precipitation, and the type of ground surface (dry desert, moist soil, snow cover, etc.) also influence the temperature of the air at the surface. Thus, using the 500 mb heights to estimate surface temperatures is not exact. However, as you will see, the 500 mb maps often provide a very good overview of the pattern of warm and cold conditions near the ground surface.

Examples:

Let's look at ground surface temperature pattern over the United States on December 9, 2017, which is the day depicted in the example 500 mb height anomaly map discussed on this page. The height anomaly map is shown again below on the left, while the image on the right shows the measured ground surface high temperature departure from average (measured high temperature on December 9, 2017 minus the average high temperature). Note that the large-scale pattern of surface temperature (right side) is generally consistent with the 500 mb height anomaly pattern (left side). Temperatures were generally below average in the eastern US where a 500 mb trough and below average 500 mb height anomalies are located, while temperature were generally above average in the western US and Alaska where a 500 mb ridge and above average 500 mb height anomalies are located. An exception to the expected relation between the 500 mb height anomaly and surface temperature occurred in the states of Oregon and Idaho. These regions are under a 500 mb ridge with well above average 500 mb height, yet the surface high temperature was below average. This is an example where this method was not accurate in estimating the surface temperature over a local region. [In this case, it seems that a shallow layer of cold air formed above the ground and the December sunshine was not strong enough to penetrate persistent cloud cover to warm it up much during the day].

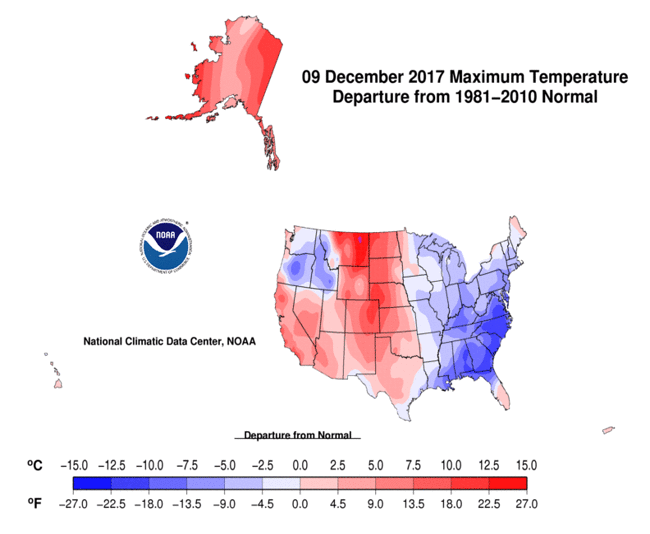

500 mb height anomaly map for 12Z on December 9, 2107	Measured high surface temperature over the US on December 9, 2017 relative to average. Departure from normal is the measured high temperature minus the average high temperature for the day.

The remainder of this section includes examples of 500 mb height maps that were used in previous semesters. These 500 mb maps were obtained from a different source and do not show the height anomaly. Hopefully, you will be able to understand the explanations provided. Please do not panic if you have trouble understanding it all. I think these examples will be beneficial for some students, so I have decided to leave them at the bottom of this page.

The first example shows the extreme cold outbreak that took place over the eastern part of the United States in early January of 2014. The 500 mb height map for January 6 at 18 Z (11 AM local time in Tucson) is shown below. The map on the right side is the color-filled contour image. Note this is not the height anomaly. In this case the 500 mb height pattern is color filled. Notice the large trough covering much of the eastern part of the United States. The closed low centered over lake Michigan shows a 4980 meter contour. It is rare for the continental US to have 500 mb heights below 5000 meters. Based on the January 500 mb height climatology map discussed above, the average 500 mb height over lake Michigan is about 5400 meters. Thus, the 500 mb height over lake Michigan on January 6 was amazingly more than 400 meters below average! If you remember this trough was resonsible for record cold temperatures over much of the eastern United States. At the same time, there is a strong ridge over the western United States, which produced above average temperatures. I would estimate the 500 mb height over Tucson to be about 5780 meters. This is about 80 meters above average and thus much above average temperature would be expected in Tucson based on the map.

The next example is the 500 mb height map for the time 00Z on Monday, October 25, 2004 (This corresponds to a local Tucson time of 5 PM on Sunday, October 24). Next to the 500 mb map is the high temperature relative to average for the day Sunday, October 24. Notice that below average temperatures occured in the western US (associated with the trough over this region), while above average temperatures occured over the midwest southward to the southern great plains and lower Mississippi valley (associated with the ridge over this region), and below average temperatures over parts of the east coast (associated with the trough centered just offshore).

The final example is from January 14, 2007. The 500 mb map is valid for Sunday, January 14, 2007 at 18Z (this corresponds to 11 AM local Tucson time). Next to the 500 mb map is a map showing the surface temperatures across the United States at 20:15 GMT (or 20:15 Z, which is 13:15 (i.e., 1:15 PM) local time). Again, notice that temperatures are cool or cold near the trough in the western United States, for example 42°F in Tucson at 1:15 PM local time. In most of the southeastern United States, temperautures are much warmer in association with a broad ridge and closed high over the Gulf of Mexico with higher 500 mb heights.
