Hurricane Occurence, Movement

[hurricane paths]

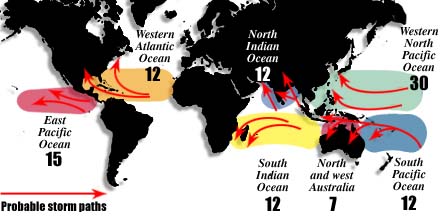

Figure 3:In an average year, 100 tropical storms develop. This figure shows where they form and the most common paths they take.

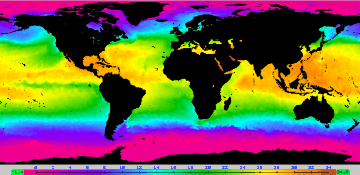

Figure 4: Sea surface temperature map for the northern hemisphere summer. The yellow, orange, and red colors show water temperatures warm enough to sustain hurricanes (> 26.5°C).
Hurricanes derive their energy from the warm tropical water and from the latent heat released as water vapor condenses into clouds.

Figure 3 shows where most hurricanes are born and the general direction in which they move. Notice that they form over tropical oceans, except in the South Atlantic and in the eastern South Pacific. The surface temperatures in these areas are too cold for their development (see figure 4). The warm waters of the Western North Pacific is the world's hot spot for tropical storm development. The table below give statistics for an "average" season in each ocean basin.

Basin Season Start Season End Tropical Storms Hurricanes Major Hurricanes
Northwest Pacific Year Round Year Round 26.7 16.9 8.5
Northeast Pacific May November 16.3 9.0 4.1
Southwest Indian October May 13.3 6.7 2.7
North Atlantic June November 10.6 5.9 2.0
Australia Southwest Pacific October May 10.6 4.8 1.9
Australia Southeast Indian October May 7.3 3.6 1.6
North Indian May November 5.4 2.2 0.4

The most important determinent of hurricane movement is the local environmental air flow in the middle troposphere. In other words, hurricanes tend to be "steered" around by the winds blowing at about 500 mb pressure. In late summer and early fall the "typical" wind patterns at 500 mb are generally easterly (or east toward west) below or south of 30° latitude and westerly (west toward east) above or north of 30° latitude. The reason for this is that a broad and elongated area of higher pressure is typically found near 30° latitude. Hurricanes to the south 30° latitude will generally be steered from east to west. When hurricanes move north of 30° latitude, they generally make a turn toward the east.

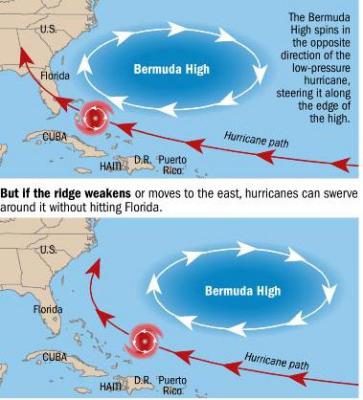

Figure 5: Burmuda high and hurricane tracks.

The subtropical high pressure area over the Atlantic ocean is often found as a high pressure cell. While the position and overall size of this feature changes, its center is often located near the island of Burmuda, hence it is often called the Burmuda High. This is quite important to hurricane movement in the vicinity of the United States as shown in figure 5. In the top panel, tropical cylones moving across the Atlantic will turn northward before reaching Florida, while in the bottom panel, they are steered toward the east coast of Florida. In situations where the Burmuda high extends slightly further west, tropical systems can be steered toward the west either across Florida or south of Florida before turning north to hit the gulf coast. If the Burmuda high extends even further west, tropical storms can move west right across the Gulf of Mexico and hit Texas or Mexico.

Once hurricanes move north of 30° latitude, they generally pick up speed (because the steering winds generally become stronger away from the topics) and will eventually turn toward the east (because prevailing 500 mb winds in the middle latitudes are from west to east). When tropical storms move into the middle latitudes, it is common for them to get "picked up" by the winds associated with a 500 mb longwave trough and move toward the north and east. The areas of the United States at risk from hurricanes includes the entire Gulf of Mexico coastline and the entire eastern seaboard, which includes the larger northeastern cities like New York. While it is much less likely that a major hurricane would hit New York City than areas further south (because the Burmuda high would have to be positioned just right and the ocean water termperature decreases on the way), it has happened in the past. History Reveals Hurricane Threat to New York City. The "Great Hurricane of 1938" slammed into Long Island and devistated much of southern New England as a category 3 storm. The last direct hit on New York City was back in 1821. And much of the New York metro area is just above sea level, making the city quite vulnerable to a strong hit. To make matters worse, the only way a really strong hurricane is going to hit New York City is if it turns north and moves very quickly, so that it does not have time to weaken much as it moves over colder water, potentially leaving little time for evacuations. A 'Cane Could Drown N.Y.C.

Although the west coast of the United States has never been hit by a hurricane, it is not all that uncommon for the west coast and desert southwest to get heavy rain events from remnants of eastern Pacific tropical storms and hurricanes. As shown in figure 3 above, most eastern Pacific hurricanes move westward out into the Pacific ocean away from the north american continent. However, if a storm gets "picked up" by the winds associated with a middle latitude 500 mb trough, it can be turned north and east back toward North America. As these storms move northward, they encounter the colder waters of the eastern Pacific and weaken below hurricane strength before reaching the United States. Farther south along Baja California and the Mexican Pacific coast, the water can be warm enough to support a hurricane, and these areas do experience hurricanes from time to time.

Predicting Hurricane Movement and Intensity, Giving Public Warnings

The text above summarizes the typical paths taken by hurricanes. However, as many of you know the actual path taken by a hurricane can be caotic and difficult to predict. One difficulty lies in the fact that the upper level winds that can steer hurricanes (pressure levels at 500 mb and higher altitudes) are often quite weak in the tropics.
Figure 6: Improvement in forecasting tropical storm position (source NHC) (nm = nautical miles, where 1 nm = 1.15 mi)
When steering winds are weak, the actual path of a hurricane is determined by the structure of the storm and the storm's interaction with the environment. Factors that may contribute to a storms path include: a nearby area of ever so slightly warmer or colder sea temperatures, interactions between the storm and nearby land areas, the relative location and intensity of convection within a storm, or weak and unnoticed disturbances in the upper air wind flow. Thus, it is not all that uncommon for hurricanes to take erratic paths and make odd turns that catch weather forecasters by surprise. If you are interested, you can look at the track of all Atlantic Hurricanes from 1851-2004 (from Unisys)

The National Hurrican Center in Miami, Florida uses sophisticated computer models to predict hurricane movement. Although there are still many aspects of hurricane evolution that we do not understand, steady progress has been made in improving forecasts of hurricane movement (see Figure 6).

A more challenging problem is to predict the future intensity of hurricanes, that is will they strengthen or weaken and how fast will these changes occur. The problem here is caused by both by our lack of understanding of hurricane evolution which results in poor computer modeling as well as the lack of observations or measurements near the storm's center, which are necessary to understand exactly what is happening. The big problem is pointed out by Max Mayfield, director of the National Hurricane Center -- "Most major hurricanes become major hurricanes by going through some rapid intensification cycle that we just don't understand ..." This sets up the possibility of what Mayfield calls his "nightmare scenario" -- where for example, a rather weak hurricane just off the coast rapidly intensifies to a major hurricane overnight, and slams into a coastal region where the population is unprepared. "We still haven't had that nightmare scenario where people go to bed prepared for a Category 1 hurricane and wake up to a Category 4," Mayfield says. "That's going to happen one of these days, and it's going to be devastating."

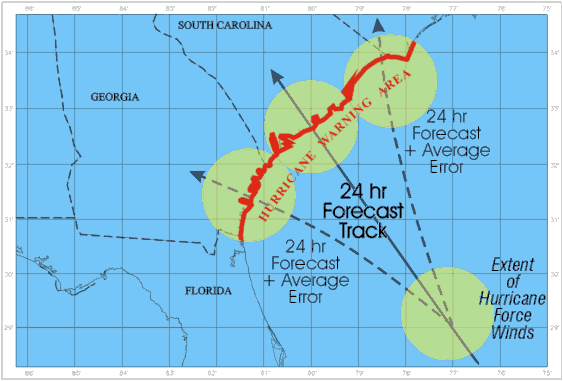

Figure 7: Example showing area over which hurricane warnings are issued (source NHC)

With modern techniques of forecasting and tracking hurricane paths, it is always possible to issue warnings about the "probable" locations that will be affected by any given hurricane. Although hurricanes can be easily tracked using satellite data, predictions of their future movement and intensity are by no means certain. Based on the estimated uncertainty in future hurricane movement, hurricane watches and warnings are issued for a wide swath as shown in Figure 7. The National Hurricane Center defines hurricane watches and warnings as follows:

Destruction at Landfall

Although we usually categorize hurricanes in terms of their windspeed (see Safir-Simpson table below), coastal flooding due to what is called the storm surge usually causes the most damage. A storm surge is an abnormally high rise in sea level along a shoreline caused primarily by high winds pushing and piling up water. With a hurricane (in the Northern Hemisphere), the most damaging storm surge and strongest winds occur to the right of the storm's center. The right side of the storm is where the wind blows directly onshore and where the windspeed is highest for a moving storm. A diagram will be drawn during lecture.

The damage potential associated with a storm surge depends upon the strength of the wind, the shape of the coastline, the slope of the Earth's solid surface near the coastline (the more gradual the slope, the higher the damage potential), and the timing of the surge with relationship to the normal high and low tides (normal high tide adds to the height of the storm surge). Forecasting the storm surge is complicated; forecasters rely on computer models. Besides the flooding or innundation of a coastal area by the storm surge, the storm's winds produce high waves which batter objects on land. Water is quite heavy and destructive often undercutting buildings and bridges.

Assorted annimations showing areas in United States that would be innundated by storm surges:

It can be rather misleading to think of the storm surge as a big wave. The storm surge is a large dome of water that can be over 100 km in width, which sweeps over the coastline. Storm surges have demolished marinas, piers, boardwalks, houses, and other shoreline structures, while eroding beaches and washing out coastal roads and railroads. The height of the dome of water depends on the windspeed as shown in the Saffir-Simpson table below.

High winds also cause considerable damage. Hurricane strength winds can damage or destroy vehicles, buildings, bridges, etc. High winds also turn loose debris into flying projectiles, making the outdoor environment even more dangerous. As hurricanes come in many sizes, the area covered by hurricane force winds is a factor in the total amount of damage done. For example, not only was Katrina a very powerful storm, it was also a very large storm.

Flooding is also caused by the heavy rains associated with hurricanes, especially when a slow moving or nearly stationary hurricane sits just offshore causing a prolonged period of heavy rains over nearby coastal areas. This can be especially problematic if the nearby coast has sharply rising mountains, enhancing the heavy rains by orographic lifting, with the runoff causing landslides.

Considerable damage may also occur from hurricane-spawned tornadoes that may form as the hurricane interacts with land areas. Most hurricanes that strike the United States produce at least one tornado. About one-quarter of them produce significant numbers of tornadoes. Tornadoes are most likely to develop in the right front quadrant of the storm, and are more likely to be associated with a spiral rain band rather than the storm's center. They result from the vertical wind shear present in the lower levels of the hurricane's circulation. Most hurricane-spawned tornadoes are of the weak variety (compared to the monsters that can form over the great plains of the United States), but can still produce significant damage.

Hurricanes weaken rapidly after making landfall since the strom is cutoff from its fuel supply (the warm ocean water). Although winds weaken, heavy and flooding rains may move far inland with the storm remnants.

In summary, the possible dangers associated with a hurricane are:

In an effort to estimate the possible damage of a hurricane's sustained winds and the storm surge could do to a coastal area, the Saffir-Simpson scale was developed (see table below).

Saffir-Simpson Hurricane Damage-Potential Scale
Scale Number
(Category)
Central Pressure
mb (in.)
Winds
mi/hr (knots)
Storm Surge
ft (m)
Damage
1 >980 (>28.94) 74-95 (64-82) 4-5 (~1.5) Damage mainly to trees, shrubbery and unanchored mobile homes
2 965-979 (28.50-28.91) 96-110 (83-95) 6-8 (~2.0-2.5) Some trees blown down; major damage to exposed mobile homes; some damage to roofs of buildings
3 945-964 (27.91-28.47) 111-130 (96-113) 9-12 (~2.5-4.0) Foliage removed from trees; large trees blown down; mobile homes destroyed; some structural damage to small buildings
4 920-944 (27.17-27.88) 131-155 (114-135) 13-18 (~4.0-5.5) All signs blown down; extensive damage to roofs, windows, and doors; complete destruction of mobile homes; flooding inland as far as 10 km (6 mi); major damage to lower floors of structures near shore
5 <920 (<27.17) >155 (>135) >18 (>5.5) Severe damage to windows and doors; extensive damage to roofs of homes and industrial buildings; small buildings overturned and blown away; major damage to lower floors of all structures less than 4.5 m (15 ft) above sea level within 500 m of shore

Distribution of Major Landfalling hurricanes in the United States

Map indicating the location and strength of all major landfalling hurricanes (category 3 and higher) in the United States from 1899 through 2004. The overall average is slightly less than one per year. 2005, which is not included in the link, had a record of four major landfalling hurricanes: Dennis, Katrina, Rita, and Wilma.
