Music this morning included "Chan Chan" from the Buena Vista Social Club playing at Carnegie Hall, "Don't Panic" from the Hot Club of San Francisco, and the  Preservation Hall Jazz Band with "Tailgate Ramble"

Quiz #3 isn't until Thursday of next week (Nov. 6), but Part 1 of the Quiz #3 Study Guide is now available online nonetheless.  Several students have mentioned they are concerned about their quiz scores.  My experience is that it is usually not a question of not studying enough but rather not studying in the right kind of way.  I encourage students to pick a small sample of course material, study it like they would for a quiz, and then come to my office.  I'll ask you questions about what you have studying and usually can tell whether you're understanding the material like I think you should be.  The remainder of the Quiz #3 Study Guide should appear before class on Thursday.

There are also some Saturating Air with Water Vapor notes online that I am encouraging everyone to read.  These notes attempt to explain why there is an upper limit to the amount of water vapor that can be found in air and why the upper limit depends on the air's temperature.

Finally a page of questions was handed out in class.  You can download a copy here.  This isn't an assignment, rather it just gives you some practice with the material we are covering.  Answers to all the questions will appear online at some point.

We had time last week to work 1 of 4 humidity example problems.

Humidity example problem #1
Tair = 90 F
RH = 20%
r = 6 g/kg
 Td = 45 F

We were given the air temperature and the mixing ratio and had to determine the relative humidity and the dew point temperature.  The results are shown above.

We'll do another problem just to remind you of the procedure.

Humidity example problem #2

In problem #2 we were given the air temperature and the relative humidity.
and needed to compute the mixing ratio and the dew point.
Tair = 90 F
RH = 50%
r = ?
 Td = ?

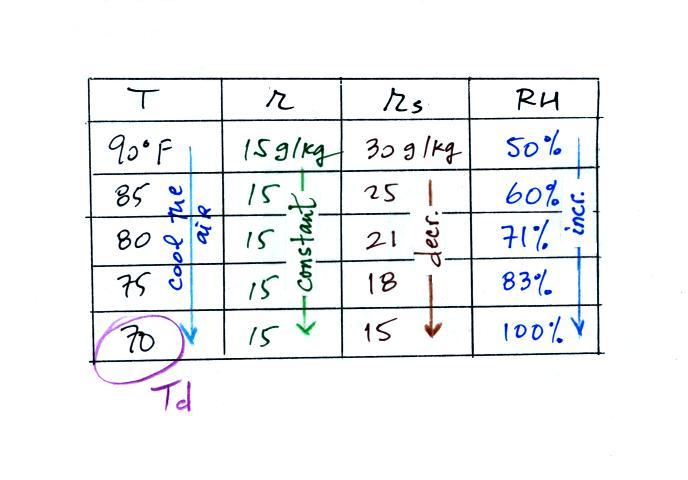

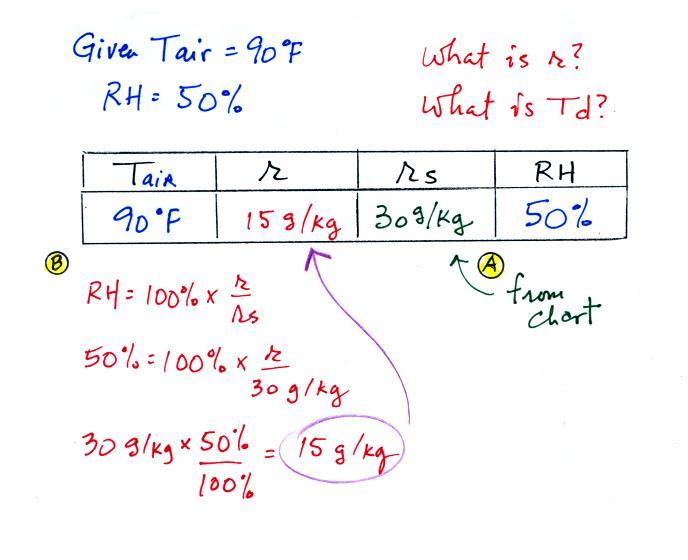

The problem is worked out in detail below:


First you fill in the air temperature and the RH data that you are given.

(A) since you know the air's temperature you can look up the saturation mixing ratio (30 g/kg).

(B)  Then you might be able to figure out the mixing ratio in your head.  Air that could hold up to 30 g/kg of water vapor is filled to 50% of its capacity.  Half of 30 is 15, that is the mixing ratio.  Or you can substitute into the relative humidity formula and solve for the mixing ratio.  The details of that calculation are shown above at B.


Finally you imagine cooling the air.  Notice how the saturation mixing ratio decreases, the mixing ratio stays constant, and the relative humidity increases as the air is cooled.   In this example the RH reached 100% when the air had cooled to 70 F.  That is the dew point temperature.

What does the difference Ta - Td tell you about the relative humidity?

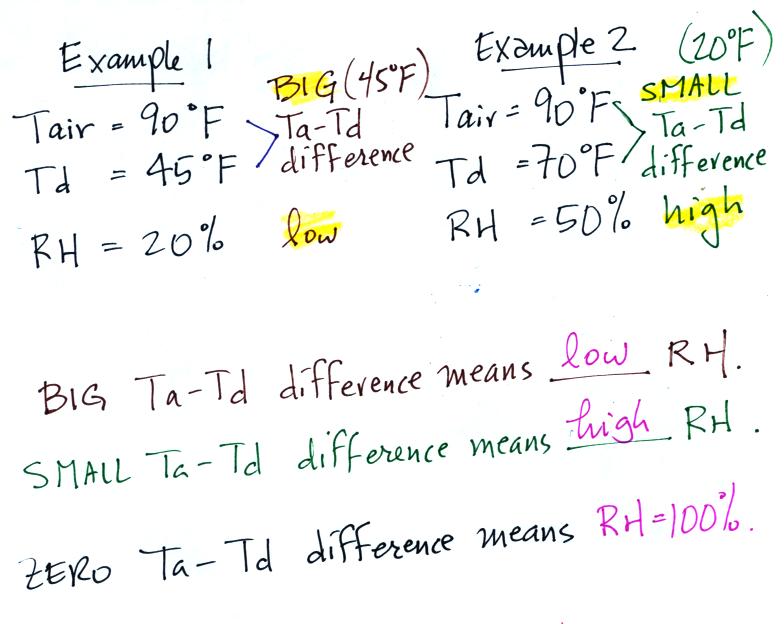

We can use results from humidity problems #1 and #2 to learn and understand a useful rule.  The figure below wasn't shown in class, you were supposed to figure out the rule on your own.



In the first example the difference between the air and dew point temperatures was large (45 F) and the RH was low (20%).

In the 2nd problem the difference between the air and dew point temperatures was smaller (20 F) and the RH was higher (50%).

The easiest way to remember this rule is to remember the case where there is no difference between the air and dew point temperatures.  The RH then would be 100%.

Humidity example problem #3
Tair = ?
RH = 50%
r = 10.5 g/kg
 Td = ?

We skipped this problem in class.  But I've included all the details below just in case you want to try to solve the problem (see also Question #8 on today's class handout)

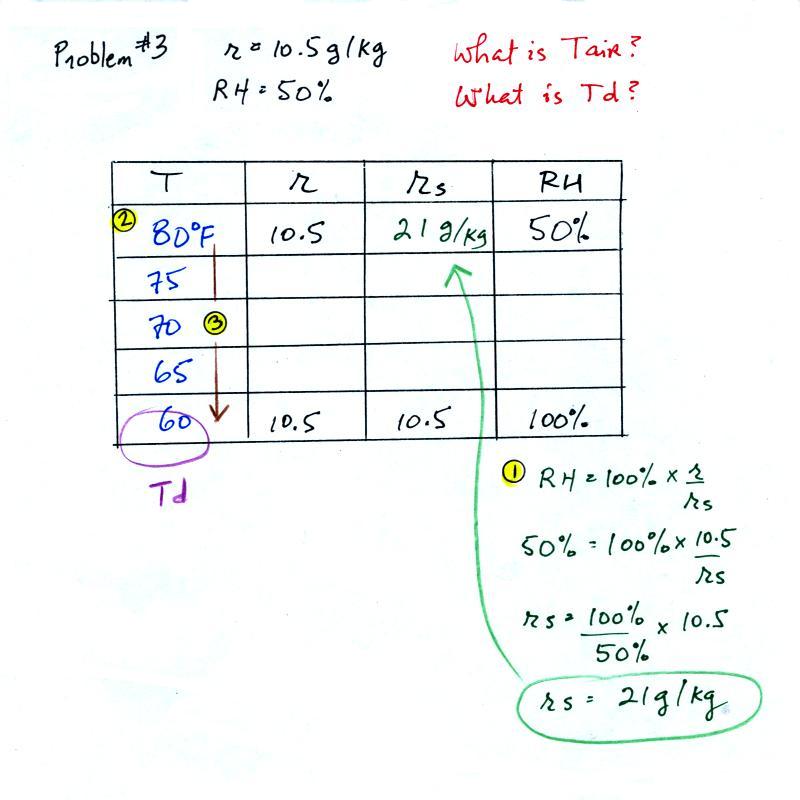

You're given the the mixing ratio = 10.5 g/kg and a relative humidity of 50%.    You need to figure out the air temperature and the dew point temperature.  Here's the play by play solution to the question:

(1) The air contains 10.5 g/kg of water vapor.  This is 50% (half) of what the air could potentially hold.  So the air's capacity, the saturation mixing ratio must be 21 g/kg (you can either do this in your head or use the RH equation following the steps shown above).

(2) Once you know the saturation mixing ratio you can look up the air temperature in a table (80 F air has a saturation mixing ratio of 21 g/kg)

(3) Then you imagine cooling the air until the RH becomes 100%.  This occurs at 60 F.  The dew point is 60 F

Humidity example problem #4
Tair = 90 F
RH = ?
r = ?
 Td = 50 F

One of the things we said when learning about dew point is that it has the same job as mixing ratio - it gives you an idea of the actual amount of water vapor in the air.  This problem will show that if you know the dew point, you can quickly figure out the mixing ratio.  Knowing the dew point is equivalent to knowing the mixing ratio.

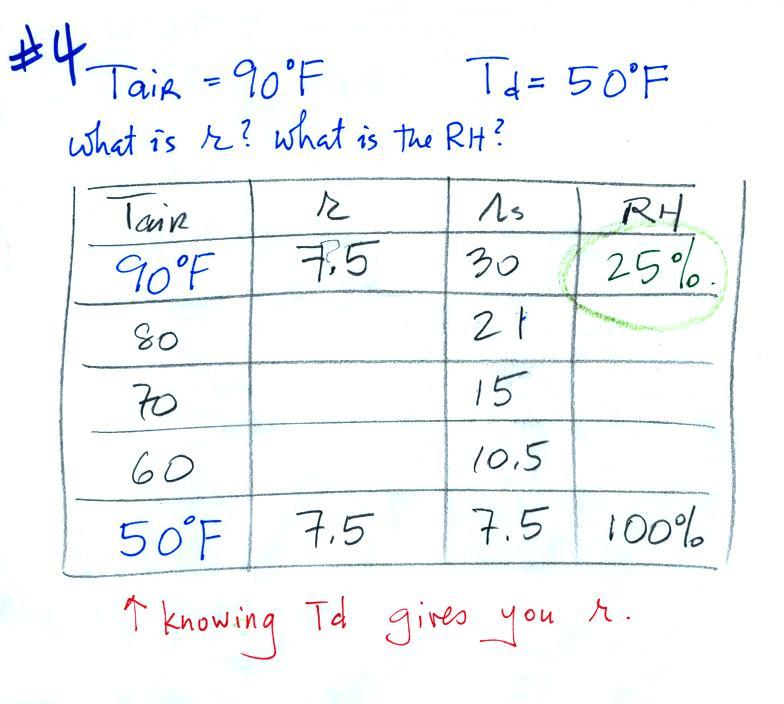

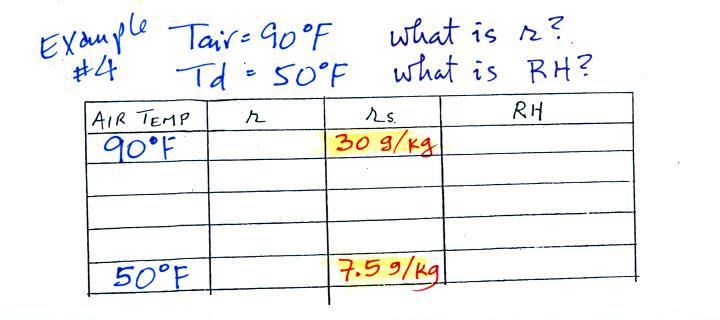

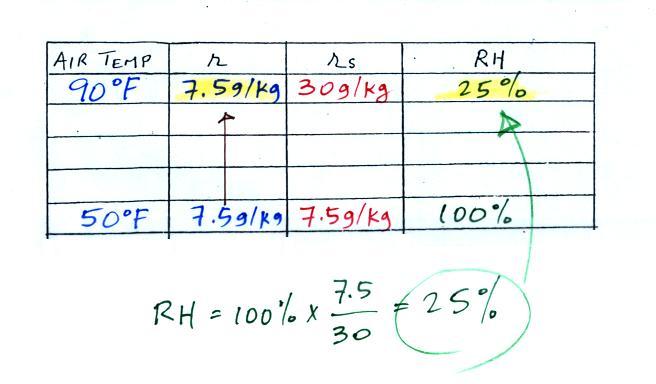

Here's something like what we ended up with in class, we were given the air temperature and the dew point temperature.  We were supposed to figure out the mixing ratio and the relative humidity.

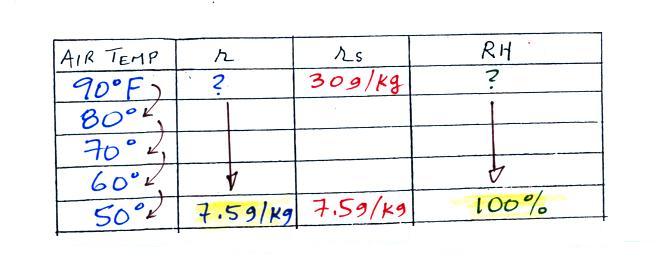

We enter the two temperatures onto a chart and look up the saturation mixing ratio for each.


We ignore the fact that we don't know the mixing ratio.  We do know that if we cool the 90 F air to 50 F the RH will become 100%.  So on the 50 F row, we can set the mixing ratio equal to the value of the saturation mixing ratio at 50 F, 7.5 g/kg.


Remember back to the three earlier examples.  When we cooled air to the the dew point, the mixing ratio didn't change.  So the mixing ratio must have been 7.5 all along.   Once we know the mixing ratio in the 90 F air it is a simple matter to calculate the relative humidity, 25%.

Drying moist air

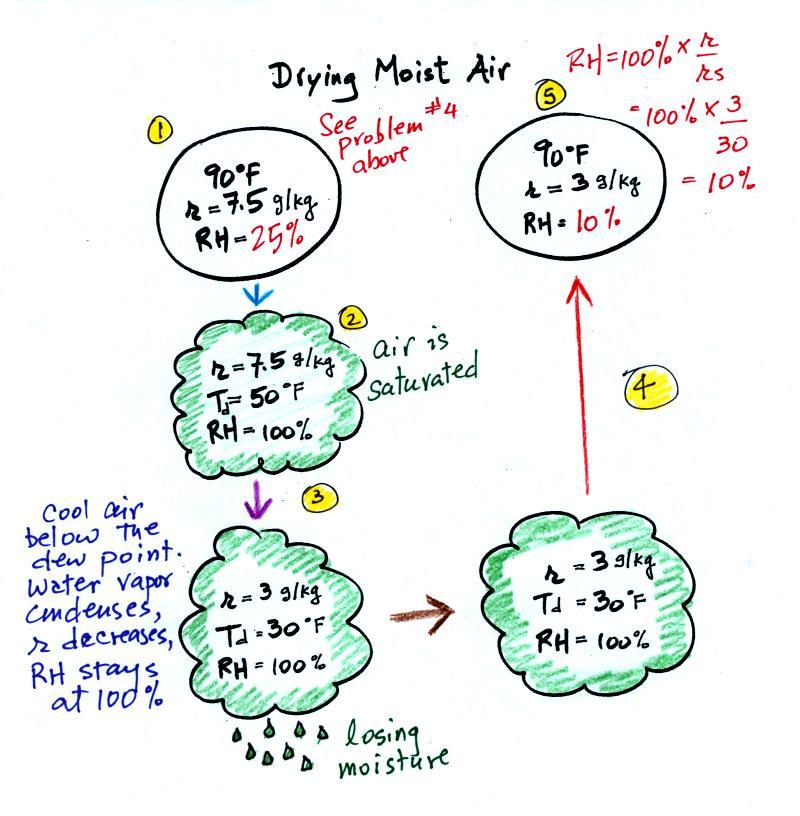

The figure below is on p. 87 in the photocopied ClassNotes.  It explains how you can dry moist air.



At Point 1 we start with some 90 F air with a relative humidity of 25%, fairly dry air.   These are the same numbers in Example Problem #4.  We imagine cooling this air to the dew point temperature, 50 F.  While doing that the mixing ratio, r, would stay constant.  Relative humidity would increase and eventually reach 100%.  A cloud would form (Pt. 2 in the figure above).

Then we continue to cool the air below the dew point, to 30 F.  Air that is cooled below the dew point finds itself with more water vapor than it can contain.  The excess moisture must condense (we will assume it falls out of the air as rain or snow).  Mixing ratio will decrease, the relative humidity will remain 100%.  When air reaches 30 F it contains 3 g/kg, less than half the moisture that it originally did (7.5 g/kg).  The air is being warmed back up to 90 F along Path 4.  As it warms the mixing ratio remains constant.  At Point 5, the air now has a RH of only 10%.

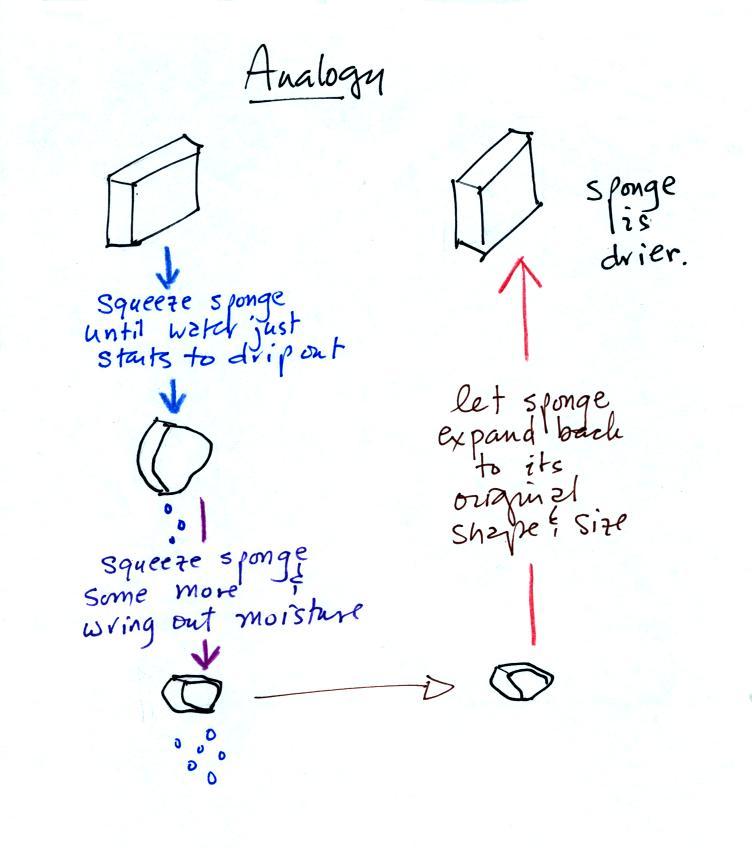

Drying moist air is very similar to wringing moisture from a wet sponge.


You start to squeeze the sponge and it gets smaller.  That's like cooling the air and reducing the saturation mixing ratio, the air's capacity for water vapor.  At first squeezing the sponge doesn't cause anything to happen (that's like cooling the air, the mixing ratio stays constant as long as the air doesn't lose any water vapor).  Eventually water will start to drop from the sponge (with air this is what happens when you reach the dew point and continue to cool the air below the dew point).  Then you let go of the sponge and let it expand back to its original shape and size (the air warms back to its original temperature).  The sponge (and the air) will be drier than when you started.

Dry winter air
The air indoors in the winter is often quite dry.

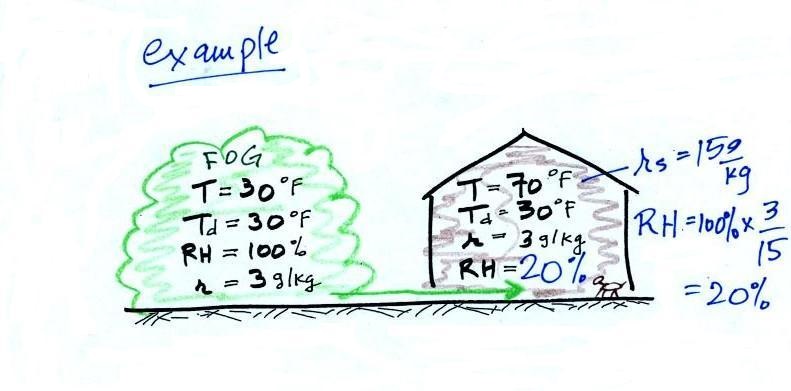

In the winter cold air is brought inside your house or apartment and warmed.  Imagine 30 F air with a RH of 100% (this is a best case scenario, the cold air outdoors usually has a relative humidity less than 100% and is drier). Bringing the air inside and warming it will cause the RH to drop from 100% to 20%..  This can cause chapped skin, can irritate nasal passages, and causes cat's fur to become charged with static electricity.

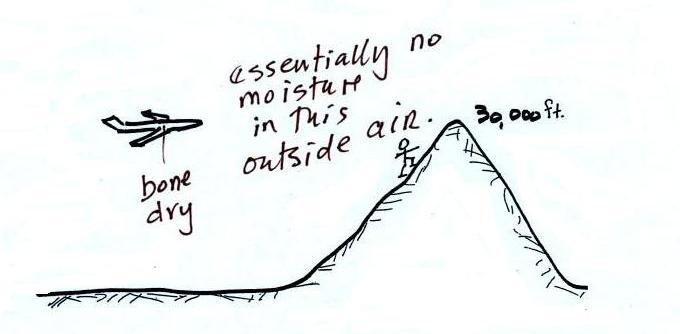

The air in an airplane comes from outside the plane.  The air outside the plane can be very cold (-60 F perhaps) and contains very little water vapor (even if the -60 F air is saturated it would contain essentially no water vapor).  When brought inside and  warmed to a comfortable temperature, the RH of the air in the plane will be essentially 0%.  Passengers often complain of dehydration on long airplane flights.  This may increase the risk of catching a cold (ref)

The rain-shadow effect

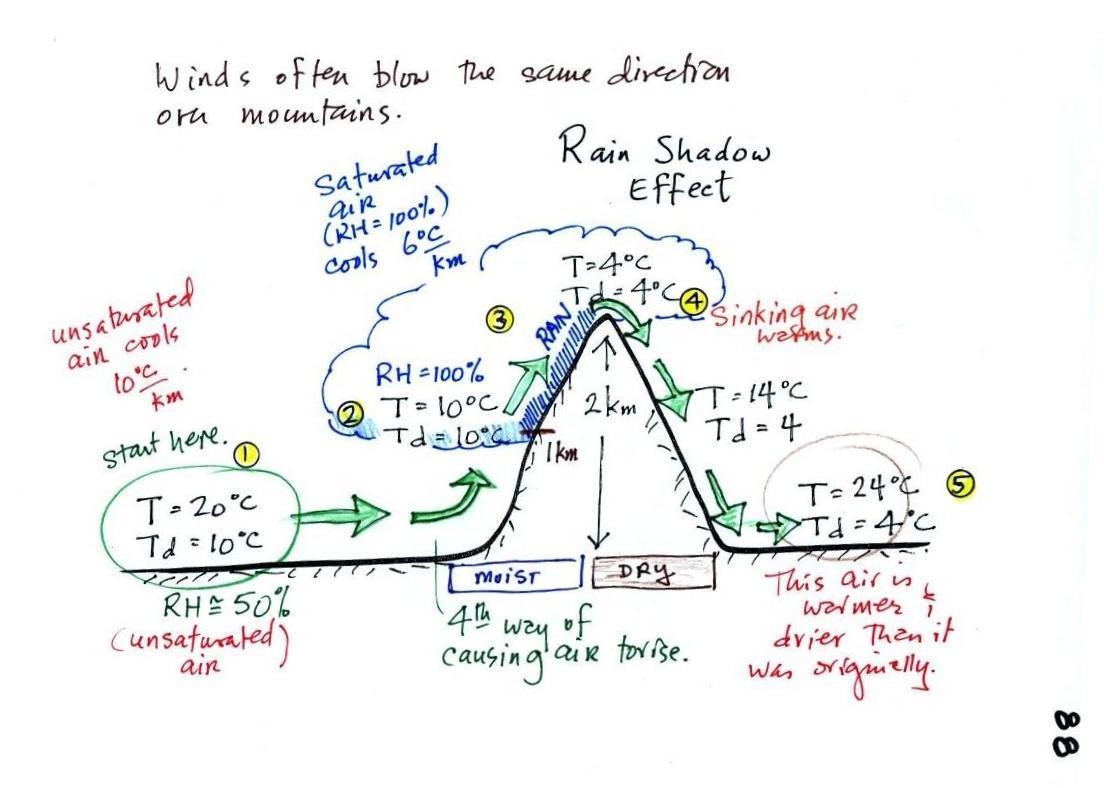

Next a much more important example of drying moist air (see p. 88 in the photocopied ClassNotes).


We start with some moist but unsaturated air (the RH is about 50%) at Point 1 (the air and dew point temperatures would need to be equal in order for the air to be saturated).  As it is moving toward the right the air runs into a mountain and starts to rise* (see below).  Rising air expands and cools.   Unsaturated air cools 10 C for every kilometer of altitude gain (this is known as the dry adiabatic lapse rate but isn't something you need to remember).  So after rising 1 km the air will cool to 10 C which is the dew point.

The air becomes saturated at Point 2 (the air temperature and the dew point are both 10 C).  Would you be able to tell if you were outdoors looking at the mountain?  Yes, you would see a cloud appear.

Now that the RH = 100%, the saturated air cools at a slower rate than unsaturated air (condensation of water vapor releases latent heat energy inside the rising volume of air, this warming partly offsets the cooling caused by expansion).  We'll use a value of 6 C/km (an average value).  The air cools from 10 C to 4 C in next kilometer up to the top of the mountain.  Because the air is being cooled below its dew point at Point 3, some of the water vapor will condense and fall to the ground as rain.  Moisture is being removed from the air and the value of the mixing ratio (and the dew point temperature) decreases.

At Point 4 the air starts back down the right side of the mountain.  Sinking air is compressed and warms.  As soon as the air starts to sink and warm, the relative humidity drops below 100% and the cloud disappears.  The sinking unsaturated air will warm at the 10 C/km rate.

At Point 5 the air ends up warmer (24 C vs 20 C) and drier (Td = 4 C vs Td = 10 C) than when it started out.  The downwind side of the mountain is referred to as a "rain shadow" because rain is less likely there than on the upwind side of the mountain.  Rain is less likely because the air is sinking and because the air on the downwind side is drier than it was on the upslope side.

Question #7 on the class handout is a fairly difficult rain-shadow effect question.

*This is topographic lifting, the 4th of 4 processes that can cause air to rise.  The other three were: convergence (surface winds spiraling inward toward a low pressure center will rise), fronts (both warm and cold fronts cause air to rise), and convection (warm air rises)

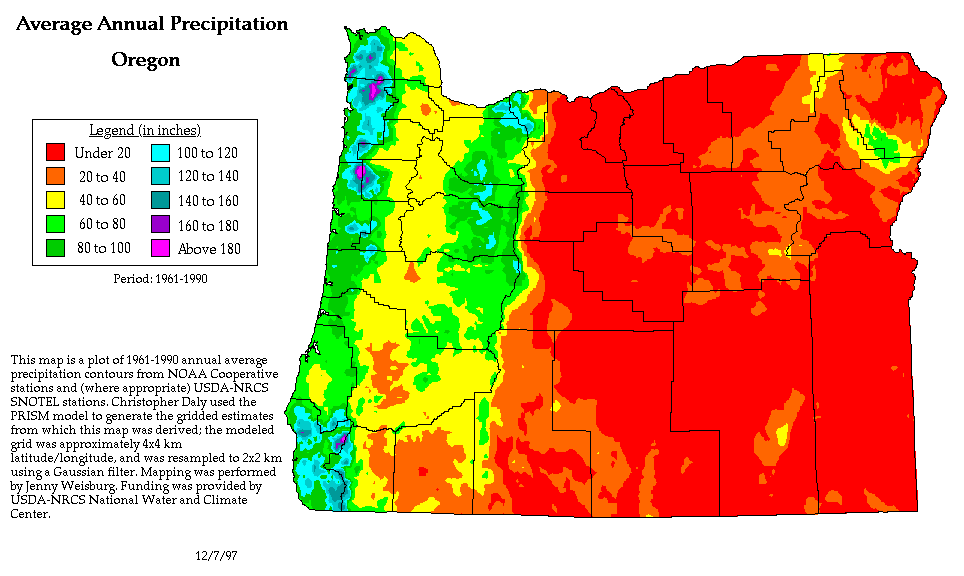

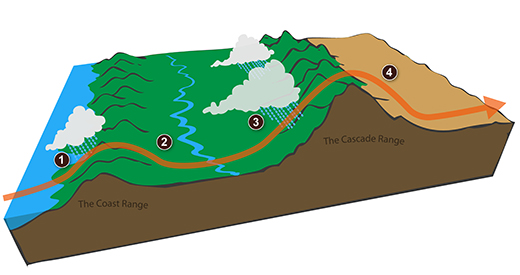

We can see the effects of a rainshadow illustrated well in the state of Oregon.  The figure above at left shows the topography (here's the source of that map).  Winds generally blow from west to east across the state.

Coming off the Pacific Ocean the winds first encounter a coastal range of mountains.  On the precipitation map above at right (source) you see a lot of greens and blue on the western sides of the coastal range.  These colors indicate yearly rainfall totals that range from about 50 to more than 180 inches of rain per year.  Temperate rainforests are found in some of these coastal locations.

That's the Willamette River, I think, in between the coastal range and the Cascades.  This valley is somewhat drier than the coast because air moving off the Pacific has lost some of its moisture moving over the coastal range.

What moisture does remain in the air is removed as the winds move up and over the taller Cascades.  Yearly rainfall is generally less than 20 inches per year on the eastern side, the rain shadow side, of the Cascades.  That's not too much more than Tucson which averages about 12 inches of rain a year.

Here's another example that wasn't shown in class
Most of the year the air that arrives in Arizona comes from the west, from the Pacific Ocean (this changes in the summer).  It usually isn't very moist by the time it reaches Arizona because it has traveled up and over the Sierra Nevada mountains in California and the Sierra Madre mountains further south in Mexico.  The air loses much of its moisture on the western slopes of those mountains.

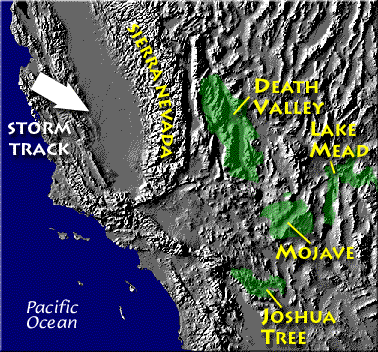

Death valley is found on the downwind side of the Sierra Nevada mountains (source of left image).  The Chihuahuan desert and the Sonoran desert are found downwind of the Sierra Madre mountains in Mexico (source of the right image)

Just as some of the world's driest regions are found on the downwind side (the rain shadow side) of mountain ranges, some of the wettest locations on earth are on the upwind sides of mountains.  There seems to be some debate whether Mt. Wai'ale'ale in Hawaii or Cherrapunji India gets the most rain per year.  Both get between 450 and 500 inches of rain per year.

Measuring humidity with a sling psychrometer
Next in today's potpourri of topics was a short discussion of how you might measure humidity.  One of the ways is to use a sling (swing might be more descriptive) psychrometer.





A sling psychrometer consists of two thermometers mounted side by side.  One is an ordinary thermometer, the other is covered with a wet piece of cloth.  To make a humidity measurement you swing the psychrometer around for a minute or two and then read the temperatures from the two thermometers.  The dry thermometer measures the air temperature.

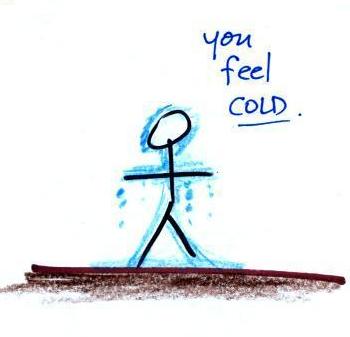

Would the wet thermometer be warmer or colder?   You can check it out for yourself - go get one of your hands wet.  Does it feel the same as the dry hand?  You might blow on both hands to increase the evaporation from the wet hand.  I think you'll find the wet hand feels colder.


What could you say about the relative humidity in these two situations (you can assume the air temperature is the same in both pictures).  You would feel coldest on a dry day (the left picture indicates dry air).  The evaporative coolers that many people use in Tucson in the summer work much better (more cooling) early in the summer when the air is dry.  Once the thunderstorm season begins in July and the air is more humid it is hard to cool your house below 80 F.

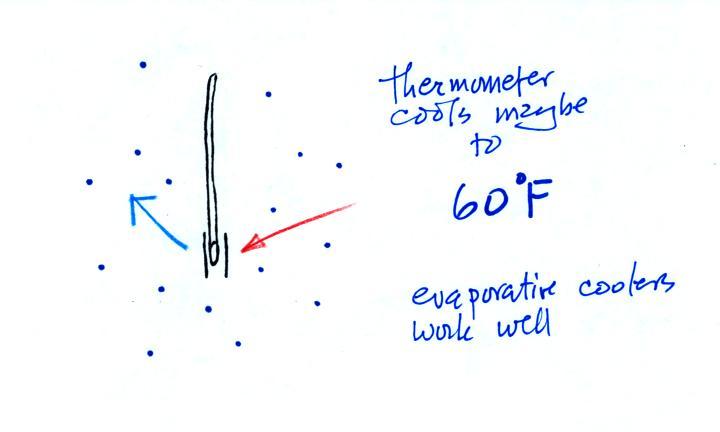

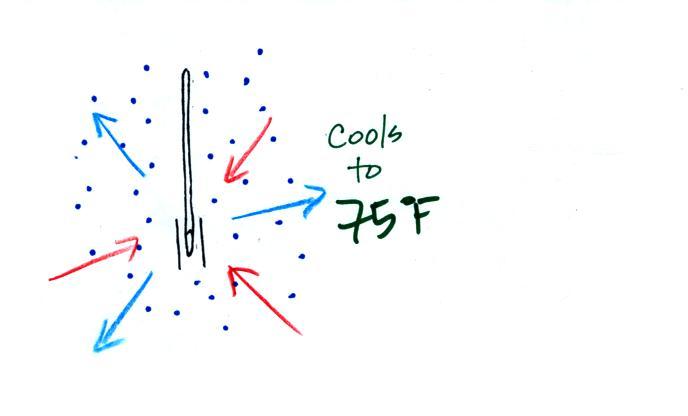

The figure shows what will happen as you start to swing the wet bulb thermometer.  Water will begin to evaporate from the wet piece of cloth.  The amount or rate of evaporation will depend on the water temperature  Warm water evaporates at a higher rate than cool water (think of a steaming cup of hot tea and a glass of ice tea).

The evaporation is shown as blue arrows because this will cool the thermometer.

The figure at upper left also shows one arrow of condensation.  The amount or rate of condensation depends on how much water vapor is in the air surrounding the thermometer.  In this case (low relative humidity) there isn't much water vapor.  The condensation arrow is orange because the condensation will release latent heat and warm the thermometer.

Because there is more evaporation (4 arrows) than condensation (1 arrow) the wet bulb thermometer will drop.  As the thermometer cools the rate of evaporation will decrease.  The thermometer will continue to cool until the evaporation has decreased enough that it balances the condensation.


The rates of evaporation and condensation are equal.  The temperature will now remain constant.

Here's the situation on a day with higher relative humidity.  There's enough moisture in the air to provide 3 arrows of condensation.


The thermometer will only need to cool a little bit



before the rates of evaporation and condensation are again equal.

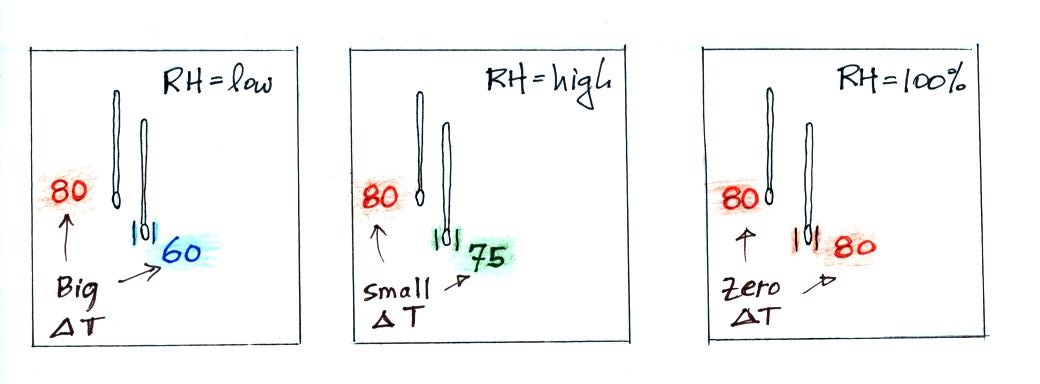

Here's the all important summary picture.


A large difference between the dry and wet temperatures means the relative humidity is low.  A small difference means the RH is higher.  No difference  means the relative humidity is 100%.

Note the difference between air temperature and dew point temperature follows the same kind of rule.

Wind chill and heat index

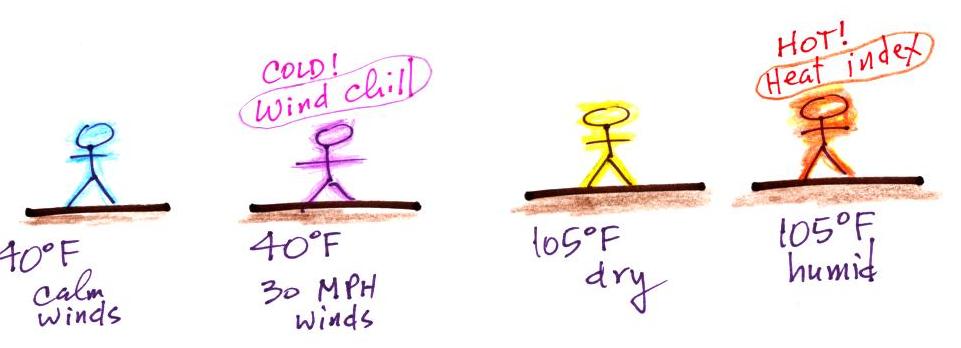

We learned that a 40 F day with 30 MPH winds will feel colder (because of increased transport of energy away from your body by convection) than a 40 F day with no wind.  The wind chill temperature tells you how much colder it will feel ( a thermometer would measure the same temperature on both the calm and the windy day).  If your body isn't able to keep up with the heat loss, you can get hypothermia and die.

There's something like that involving heat and humidity.  Your body tries to stay cool by perspiring.  You would feel hot on a dry 105 F day.  You'll feel even hotter on a 105 F day with high relative humidity because your sweat won't evaporate as quickly.  The heat index measures how much hotter you'd feel. The combination of heat and high humidity is a serious, potentially deadly, weather hazard because it can cause heatstroke (hyperthermia).

The drinking bird
Evaporative cooling and saturation are involved in the "drinking bird".  Here's a video.

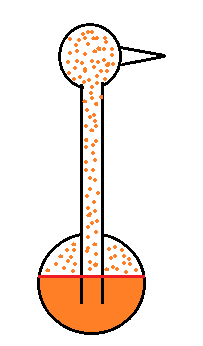

The drinking bird is filled with a volatile liquid of some kind (ether?).  Initially the bird's head and butt are the same temperature.  The liquid evaporates and saturates the air inside with vapor.

Next you get the bird's head wet.

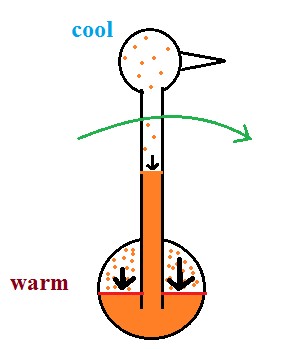

The amount of vapor in the cool saturated air in the head is less than in the warmer saturated air at the bottom.


The differences in amounts of vapor produce pressure differences.  The higher pressure at the bottom pushes liquid up the stem of the bird.  The bird becomes top heavy and starts to tip.

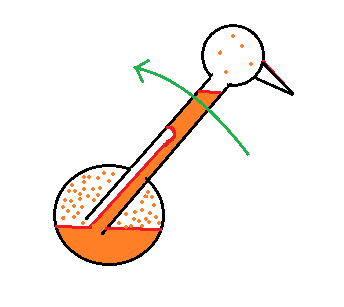

At some point the bottom end of the stem comes out of the pool of liquid at the base.  Liquid drains from the neck.

and the bird straightens back up.

You can arrange the bird so that when it tips its beak dips into a small cup of water.  This keeps the head moist and cool and the dipping motion could go on indefinitely.

Condensation and the formation of dew, frost, haze, fog, and clouds
Here's where we will be headed on Thursday.



A variety of things can happen when you cool air to the dew point and the relative humidity increases to 100%.  Point 1 shows that when moist air next to the ground is cooled to and below the dew point, water vapor condenses onto (or is deposited onto) the ground or objects on the ground.  This forms dew, frozen dew, and frost.

When air above the ground cools to the dew point, it is much easier for water vapor to condense onto small particles in the air called condensation nuclei.  Both the condensation nuclei and the small water droplets that form on them are usually too small to be seen with the naked eye.  We can tell they are present (Point 3) because they scatter sunlight and make the sky hazy.  As humidity increases dry haze turns to wet haze and eventually to fog (Point 4).  We'll try to make a cloud in a bottle and you'll be able to better appreciate the role that condensation nuclei play.

The main event on Thursday will be learning how to look up in the sky and identify and name clouds.  We'll also look at 2 different types of photographs of clouds taken with orbiting satellites and what they reveal about clouds.
Condensation and the role they play in cloud droplet formation

You might have thought that once the relative humidity in the air (RH) reaches 100% that water vapor would simply condense and form little droplets.  This is not the case; we will find that small particles in the air called condensation play an essential role in cloud formation.

it is much easier for water vapor
to condense onto small particles
called condensation nuclei
 it is much harder for water vapor
to just condense and form
small droplets of pure water

There are always lots of CCN (cloud condensation nuclei in the air) so this isn't an impediment to cloud formation.  The following information is from p. 91 in the ClassNotes.



 Note that condensation onto certain kinds of condensation nuclei and growth of cloud droplets can begin even when the relative humidity is below 100%.   These are called hygroscopic nuclei.  Salt is an example; small particles of salt mostly come from evaporating drops of ocean water.

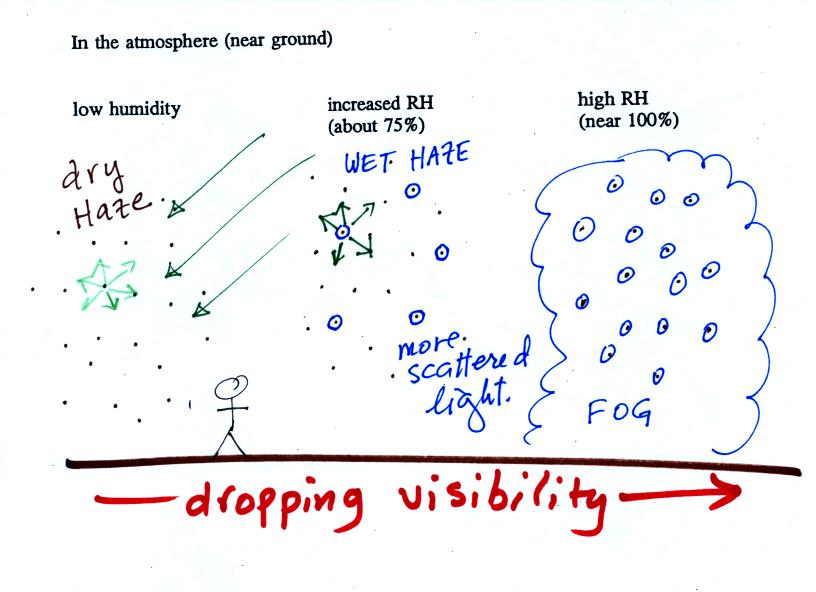

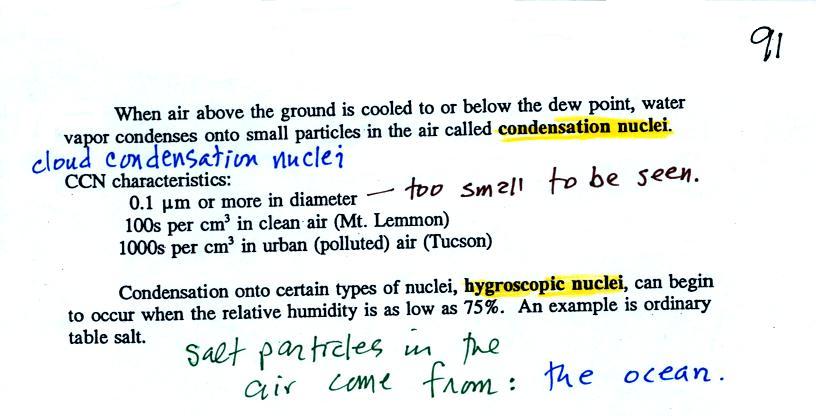

The following figure is at the bottom of p. 91 in the ClassNotes and illustrates how cloud condensation nuclei and increasing relative humidity can affect the appearance of the sky and the visibility.



The air in the left most figure is relatively dry.  Even though the condensation nuclei particles are too small to be seen with the human eye you can tell they are there because they scatter sunlight.  When you look at the sky you see the deep blue color caused by scattering of sunlight by air molecules mixed together with some white sunlight scattered by the condensation nuclei.  This changes the color of the sky from a deep blue to a bluish white color.  The more particles there are the whiter the sky becomes.  This is called "dry haze."  Visibility under these conditions might be anywhere from a few miles up to a few tens of miles.



(source of the image above)

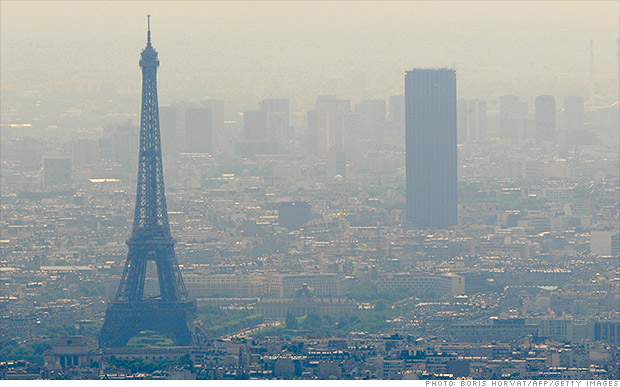

Photographs of fairly recent pollution problems in Paris illustrate an extreme case of dry haze (this is more common and more severe in China).   In Paris cars with even numbered license plates weren't allowed into the city on Monday, odd numbers were banned on Tuesday.  Public transportation was free for a short time to try to reduce automobile use.

The middle picture shows what happens when you drive from the dry southwestern part of the US into the humid southeastern US or the Gulf Coast.  One of the first things you would notice is the hazier appearance of the air and a decrease in visibility.  Because the relative humidity is high, water vapor begins to condense onto some of the condensation nuclei particles (the hygroscopic nuclei) in the air and forms small water droplets.  The water droplets scatter more sunlight than just small particles alone.  The increase in the amount of scattered light is what gives the air its hazier appearance. This is called "wet haze."  Visibility now might now only be a few miles.




Thin fog (perhaps even wet haze)
with pretty good visibility
(source of the image)
 Thick fog
(visibility was less than 500 feet)
(source of the image)

Finally when the relative humidity increases to 100% fog forms and water vapor condenses onto all the condensation nuclei.  Fog can cause a severe drop in the visibility.  The thickest fog forms in dirty air that contains lots of condensation nuclei.  That is part of the reason the Great London Smog of 1952 was so impressive.  Visibility was at times just a few feet!
