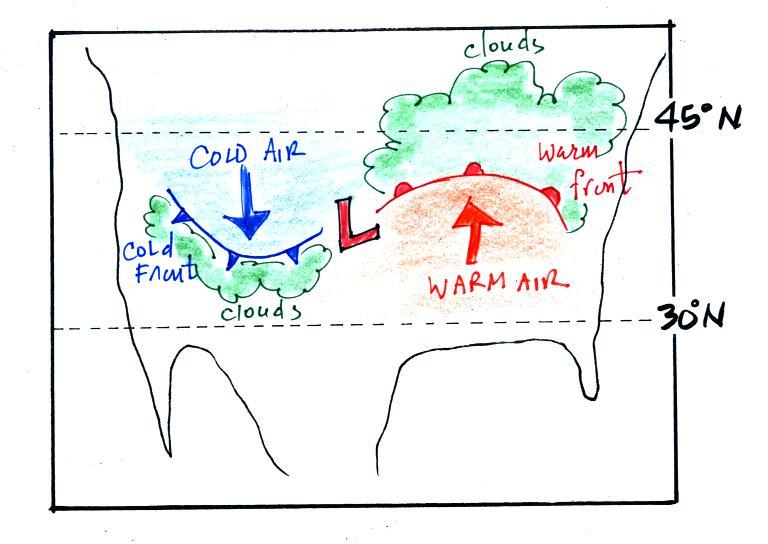

The storm system below is referred to as a middle latitude storm or extratropical cyclone.  The storm consists of a center of low pressure and fronts that spin around the low in a counterclockwise direction.  We'll be learning about cold and warm fronts today and about the kinds of weather that precede and follow them.




3-dimensional structure of cold fronts
A

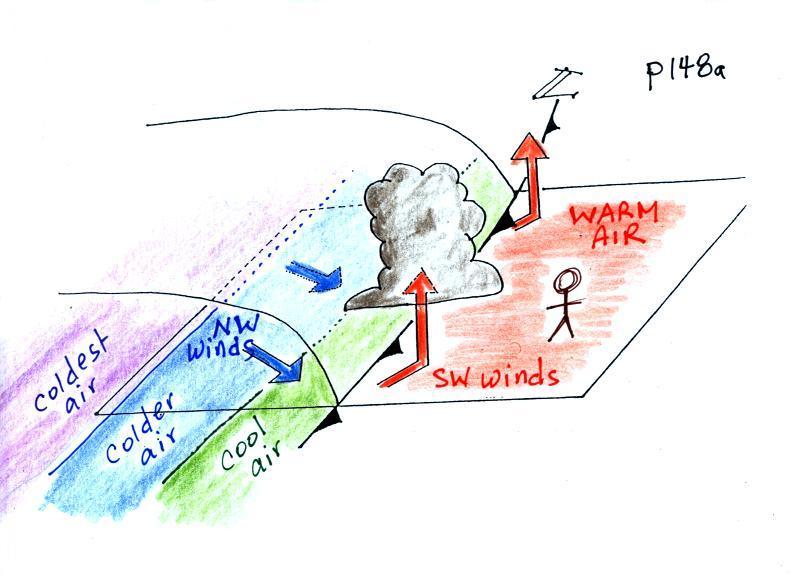

3-dimensional cross-sectional view of a cold front is shown below (we've jumped to p. 148a in the photocopied ClassNotes)




The person in the figure is positioned ahead of an approaching cold front.  Time wise, it might be the day before the front actually passes through.  There are 3 fairly important features to notice in this picture.

1.

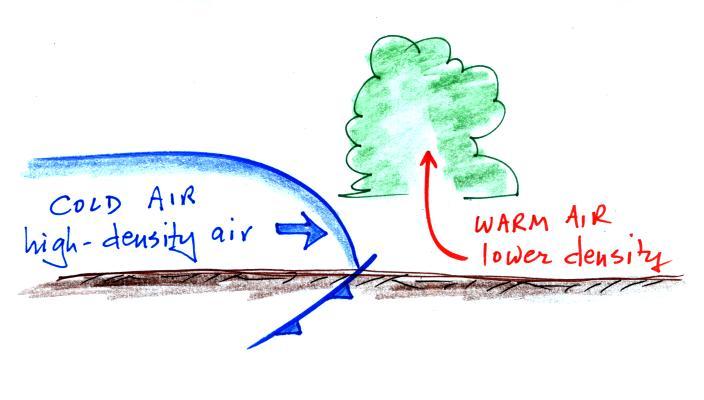

A vertical slice through a cold front is shown below at left.  The front edge of the advancing mass of cold air has a rounded shape.







Friction with the ground causes the edge to "bunch up" and gives it the blunt shape it has.  You'd see something similar if you were to pour something thick and gooey on an inclined surface and watch it roll downhill.   Or, as shown in class, you can lay your arm and hand on a flat surface.


Then slide your arm to the right.


Your fingers will drag on the surface and will curl up.

2. Because it is denser, the cold air lifts the warm air out of the way.









The cold dense air mass behind a cold front moves into a region occupied by warm air.  The warm air has lower density and will be displaced by the cold air mass.  In some ways its analogous to a big heavy Cadillac plowing into a bunch of Volkswagens.

You're in a position to appreciate a video recording of the cold front passing through Tucson.  The first video was a time lapse movie of a cold front that came through Tucson on on Easter Sunday morning, April 4, 1999.  Click here to see the cold front video (it may take a minute or two to transfer the data from the server computer in the Atmospheric Sciences Dept., be patient).  Remember this is a time lapse movie of the frontal passage.  The front seems to race through Tucson in the video, it wasn't moving as fast as the video might lead you to believe.  Cold fronts typically move 15 to 25 MPH.

The 2nd video was another cold front passage that occurred on February 12, 2012.

3.    Note the cool, cold, colder bands of air behind the cold front.



The warm air mass ahead of the front has just been sitting there and temperatures are pretty uniform throughout.  Cold fronts are found at the leading edge of a cold air mass.  The air behind the front might have originated in Canada.  It might have started out very cold but as it travels to a place like Arizona it can change (warm) considerably.  The air right behind the front will have traveled the furthest and warmed the most.  That's the reason for the cool, cold, and colder temperature bands (temperature gradient) behind the front.  The temperature behind the front should be colder than ahead of the front, but the air behind the front may not of uniform temperature.

Weather changes that precede and follow passage of a cold front

Here are some of the specific weather changes that might precede and follow a cold front


Weather variable
Behind
Passing
Ahead
Temperature
cool, cold, colder*

warm
Dew Point
usually much drier**

may be moist (though that is often
not the case here in the desert southwest)
Winds
northwest
gusty winds (dusty)
from the southwest
Clouds, Weather
clearing
rain clouds, thunderstorms
in a narrow band along the front
(if the warm air mass is moist)
might see some high clouds
Pressure
rising
reaches a minimum
falling

*  the coldest air might follow passage of a cold front by a day or two.
**nighttime temperatures drop much more quickly in dry air than in moist or cloudy air.  This is part of the reason it can get very cold a day or two after passage of a cold front.

Gusty winds and a shift in wind direction are often one of the most obvious change associated with the passage of a cold front in Tucson.

The pressure changes that precede and follow a cold front are not something we would observe or feel but are very useful when trying to locate a front on a weather map.



Locating a cold front on a weather map

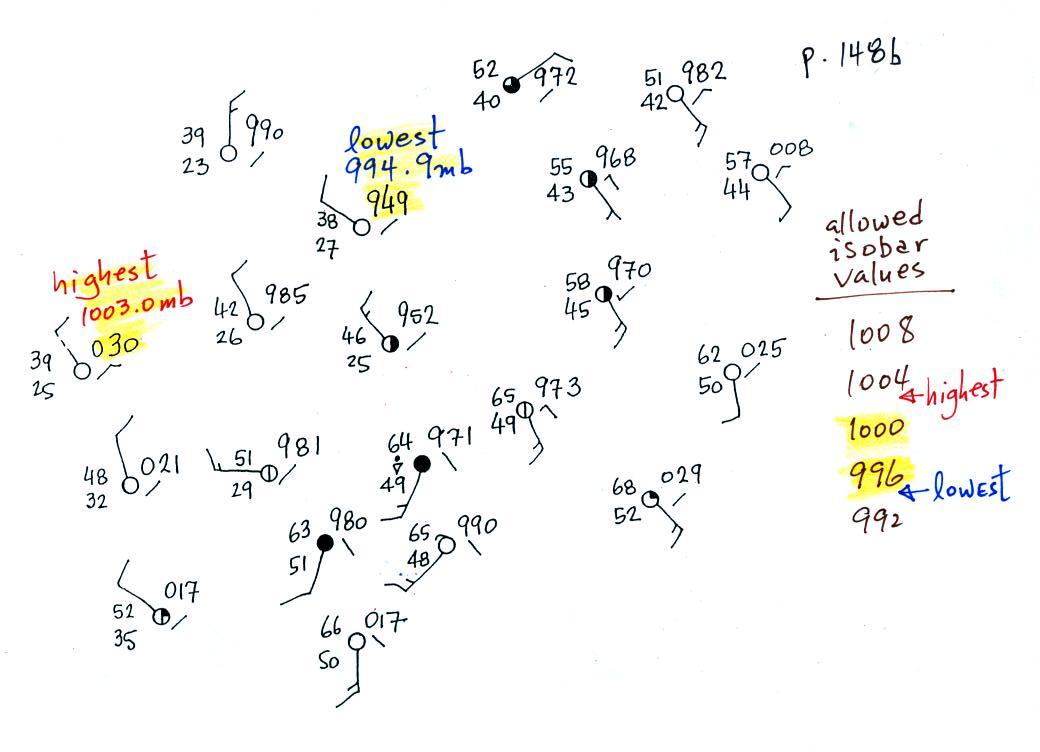

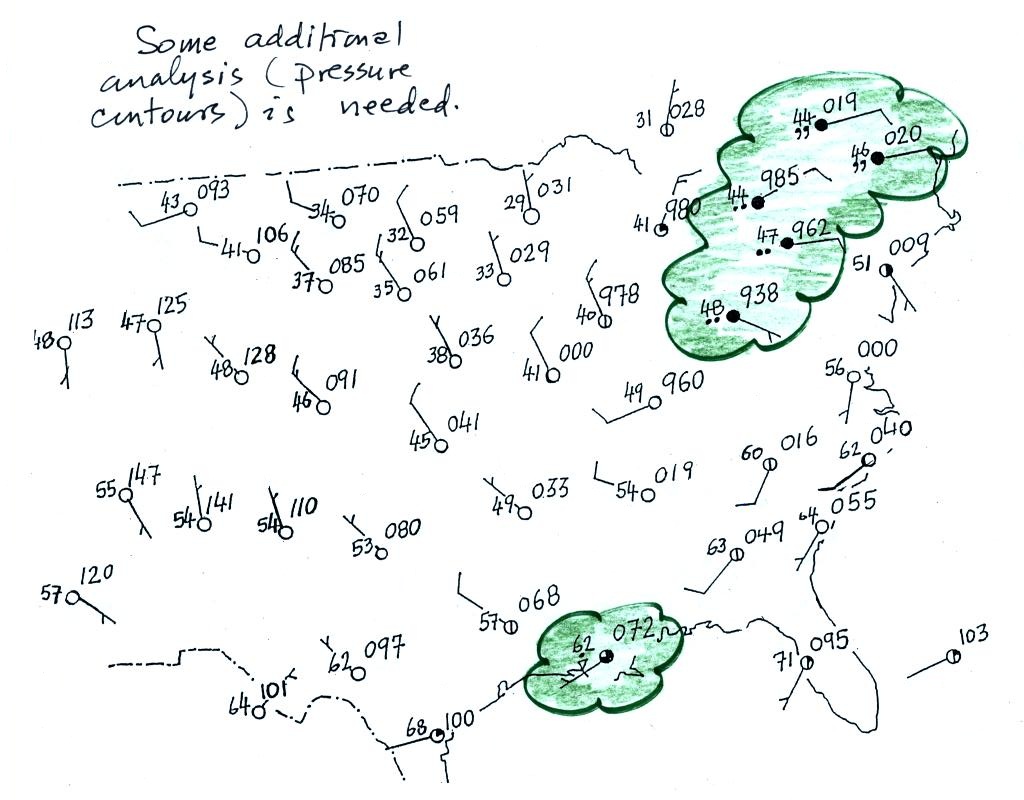

In the next figure we started with some weather data plotted on a surface map using the station model notation.  We'll try to make a little more sense of this data and eventually locate a cold front.  Study this example carefully because you will be doing the same thing on an upcoming assignment.

Step #1
In some respects fronts are like spokes on a wheel - they rotate counterclockwise around centers of low pressure.  It makes sense to first determine the location of the low pressure center.
Before trying to locate a cold front, we needed to draw in a few isobars and map out the pressure pattern.





Isobars are drawn at 4 mb increments above and below a starting value of 1000 mb.  Some of the allowed values are shown on the right side of the figure (992, 996, 1000, 1004, 1008 etc).  The highest pressure on the map is 1003.0 mb, the lowest is 994.9 mb.  You must choose from the allowed list of isobar values and pick only the values that fall between the high and low pressure values on the map.  Thus we need to draw in  996 mb and 1000 mb isobars.

Step #1 cont'd

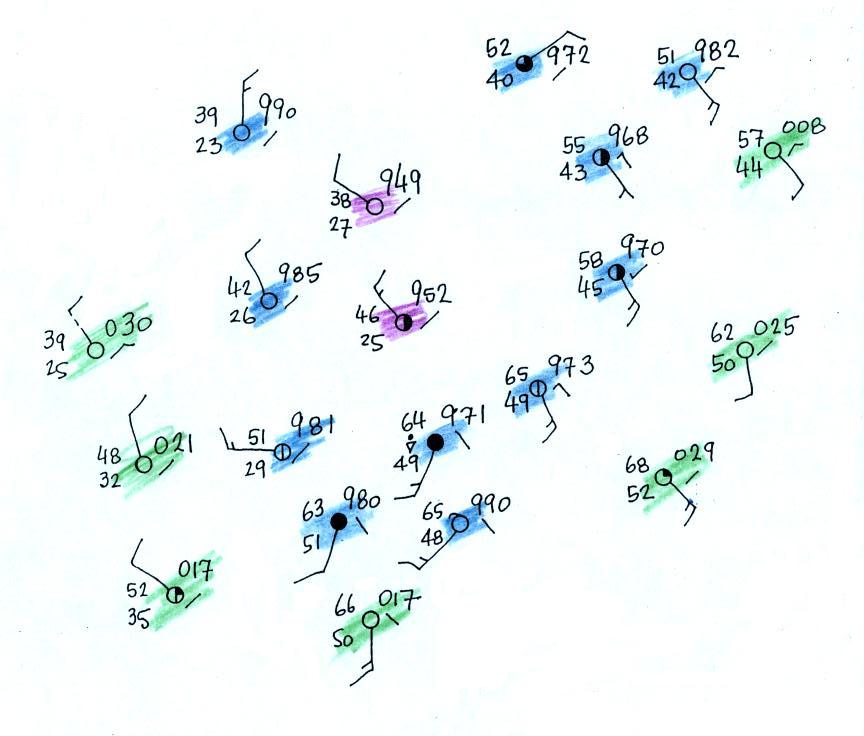

In the figure below stations with pressures lower than 996 mb have been colored in purple.  These will be enclosed by the 996 mb contour.  Pressures between 996 and 1000 mb have been colored blue.  These stations will lie outside the 996 mb contour but inside the 1000 mb isobar.  Finally stations with pressures greater than 1000 mb have been colored green.  The 1000 mb isobar will separate the blue stations from the green stations.

End of Step #1

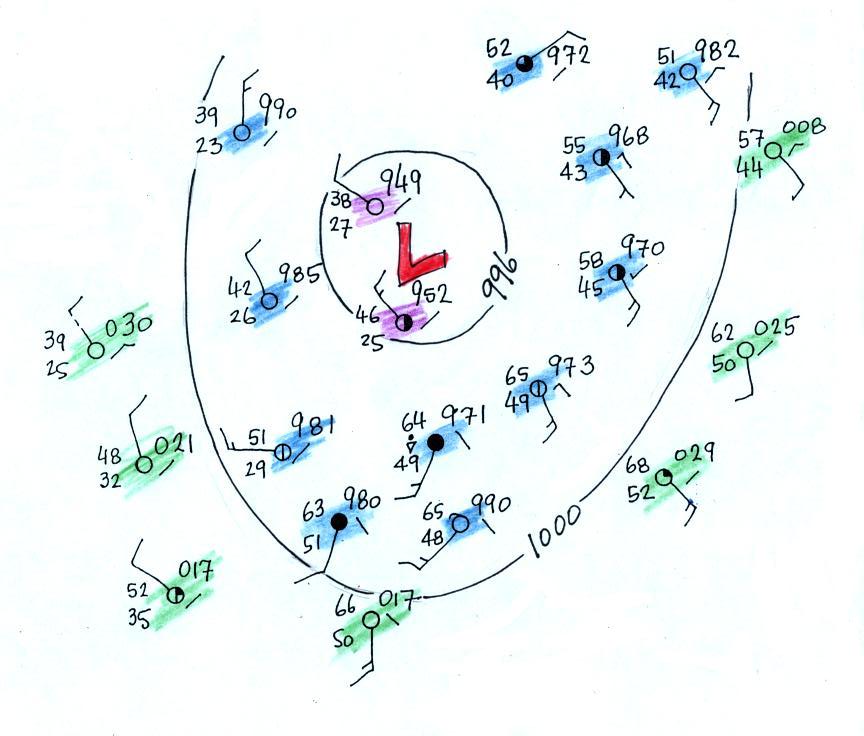

The map below shows the same picture with the 996 mb and 1000 mb contours drawn in.




Step #2

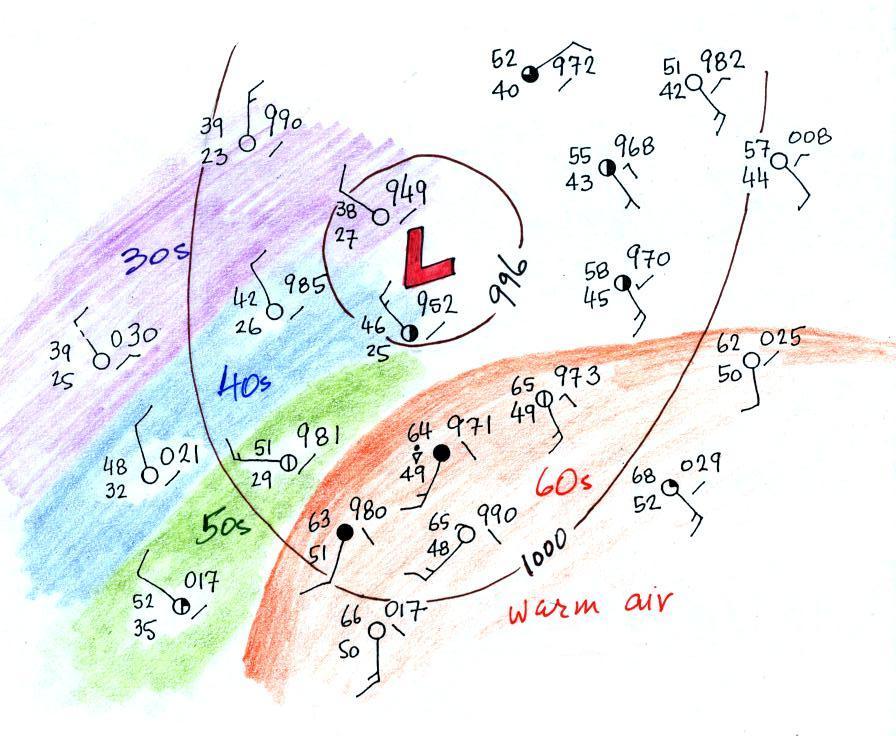

The next step was to try to locate the warm air mass in the picture.  I'll start with a new map that keeps the isobars.  The colors now will represent different air temperatures.





Temperatures are in the 60s in the lower right portion of the map; this area has been circled in orange.  Cooler air to the west of the Low pressure center has also been identified.  Does the green, blue, purple (cool, cold, colder) band look familiar?  Based on just the temperatures just should have a pretty good idea where a cold front would be found.

Step #3

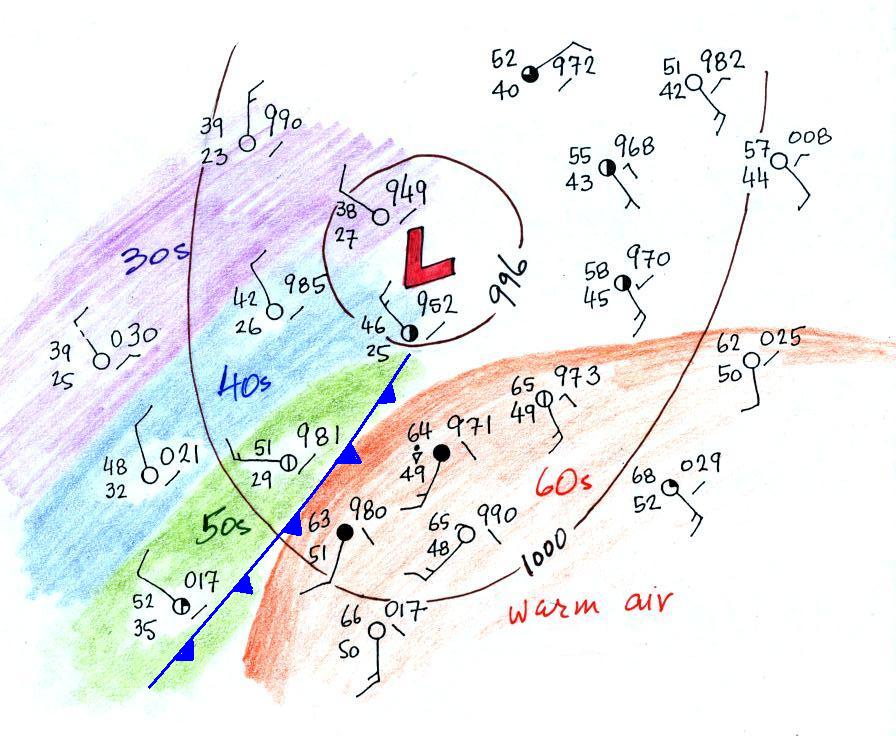

We'll go ahead and drawn in the cold front.




The cold front on the map seems to be properly positioned.  Note how the cold front is positioned at the leading edge of the cold air mass, not necessarily in front of the coldest air in the cold air mass.   3 of the stations from the bottom center portion of the map have been redrawn below.

Step #4

Check front location using some of the other weather changes (wind shift, dew point, pressure change etc.)

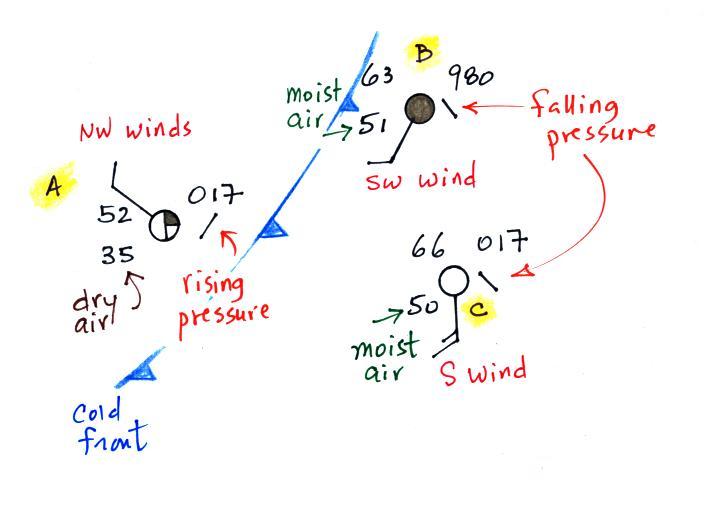

The air ahead of the front (Pts. B & C) is warm, moist, has winds blowing from the S or SW, and the pressure is falling.  These are all things you would expect to find ahead of a cold front.

Overcast skies are found at Pt. B. very near the front.

The air behind the front at Pt. A is colder, drier, winds are blowing from the NW, and the pressure is rising.  That is just what you would expect behind a cold front.  So our location of the front looks pretty good.


3-dimensional structure of warm fronts
We've learned a fair amount about cold fronts: cross-sectional structure, weather changes that precede and follow passage of a cold front, and how to locate a cold front on a surface weather map.  Now we have to do the same for warm fronts.

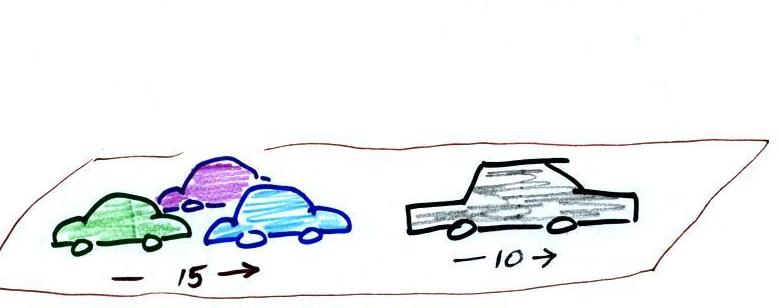

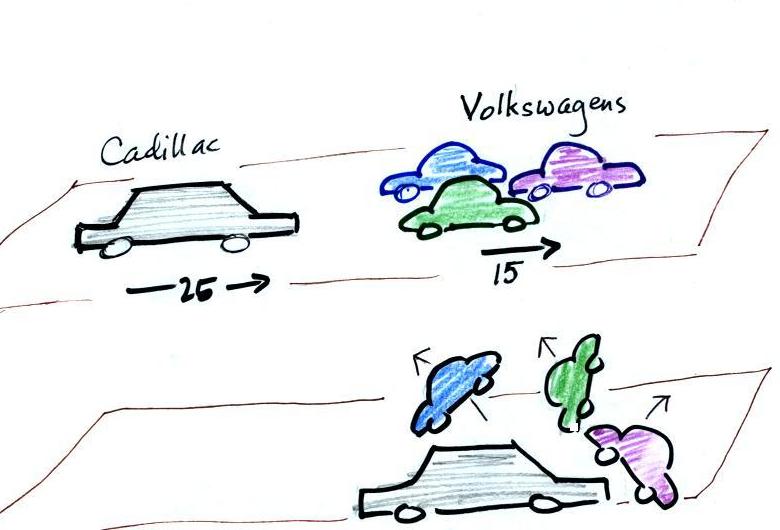

Warm fronts are more like a fleet of Volkswagens overtaking a Cadillac

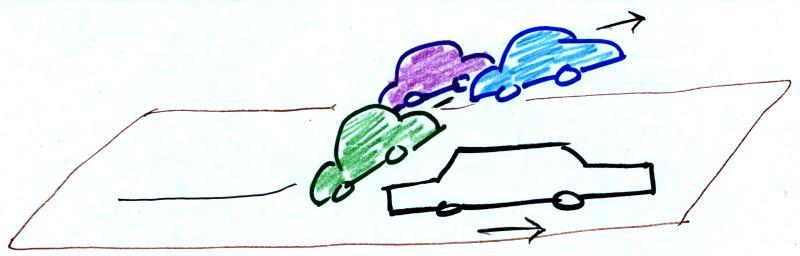

The VWs are still lighter than the Cadillac.  What will happen when the VWs catch the Cadillac?





They'll run up and over (overrun) the Cadillac.

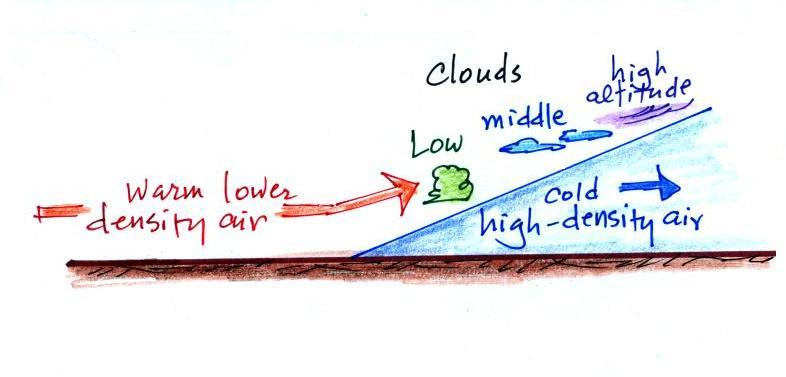

The same happens along a warm front.  Warm air is approaching some colder air that is also moving to the right.  But it's not moving fast enough, the warm air will catch it and there will be a collision.  The approaching warm air is still less dense than the cold air and will overrun the cold air mass.

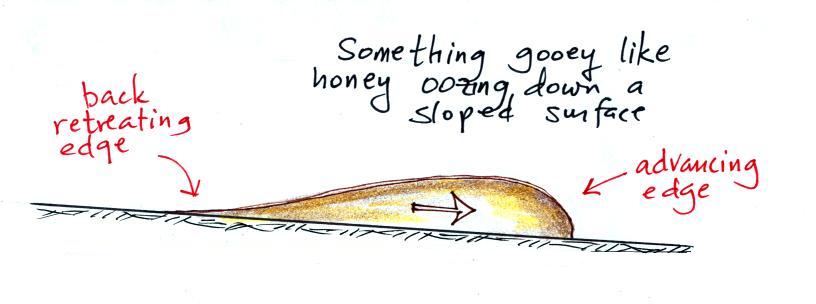

The back edge of a retreating cold mass has a much different shape than the advancing edge.  The advancing edge bunches up and is blunt.  The back edge gets stretched out and has a ramp like shape

You can use your hand and arm again.



You start with your fingers curled up then move your arm and hand to the right.



As your arm moves to the right, friction uncurls your fingers.

The warm air rises more slowly and rises over a much larger area out ahead of the warm front.  This is an important difference between warm and cold fronts.


Weather changes that precede and follow passage of a warm front

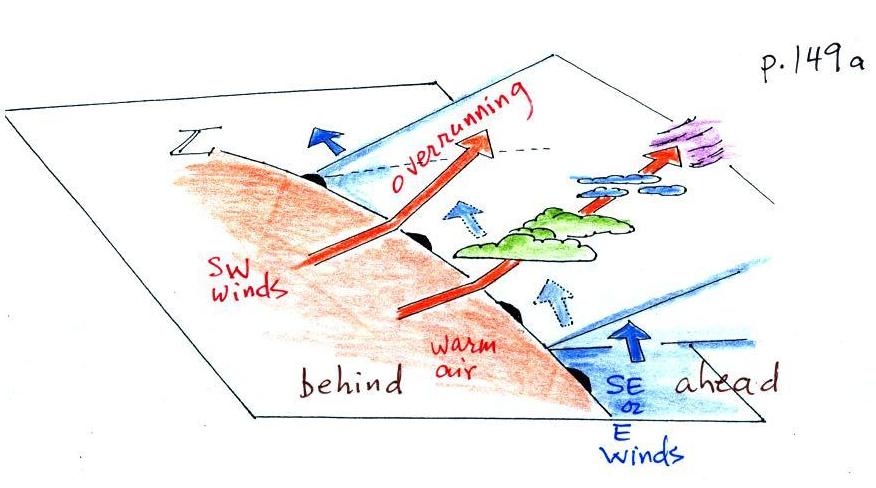

Here's the 3-dimensional view again that's in the ClassNotes.

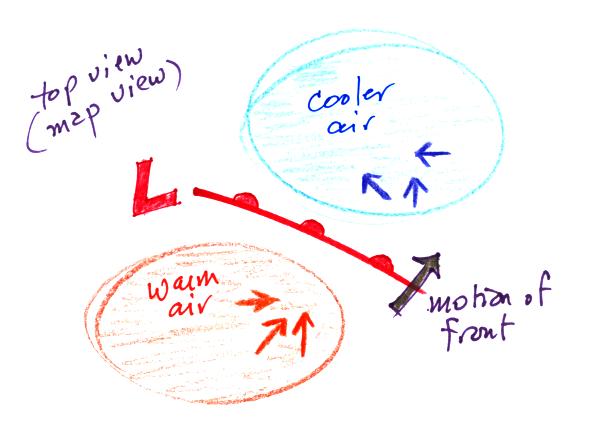

and the map view again


Here are the kinds of weather changes that usually precede and follow passage of a warm front.


Weather Variable
Behind (after)
Passing
Ahead (before)
Temperature
warmer

cool
Dew point
may be moister

drier
Winds
SW, S, SE

from the East or SE, maybe even the S
Clouds, Weather
clearing

wide variety of clouds that may precede arrival of the front by a day or two
clouds may produce a wide variety of types of precipitation also
(snow, sleet, freezing rain, and rain)
Pressure
rising
minimum
falling


Probably the key difference between warm and cold fronts (other than a cold-to-warm rather than a warm-to-cold change) is the wide variety of clouds that a warm front cause to form cover a much larger area out ahead of the front.  That's why it's highlighted above.  This happens because the warm air rises more gradually and moves out over a wider area ahead of the warm front as it rises.

Clouds associated with a cold front are usually found in a fairly narrow band along the front.  The warm air is pushed up abruptly.  All of the lifting is confined to a fairly narrow band.

Locating a warm front on a weather map
We need to finish our study of surface weather maps by trying to located a warm front.

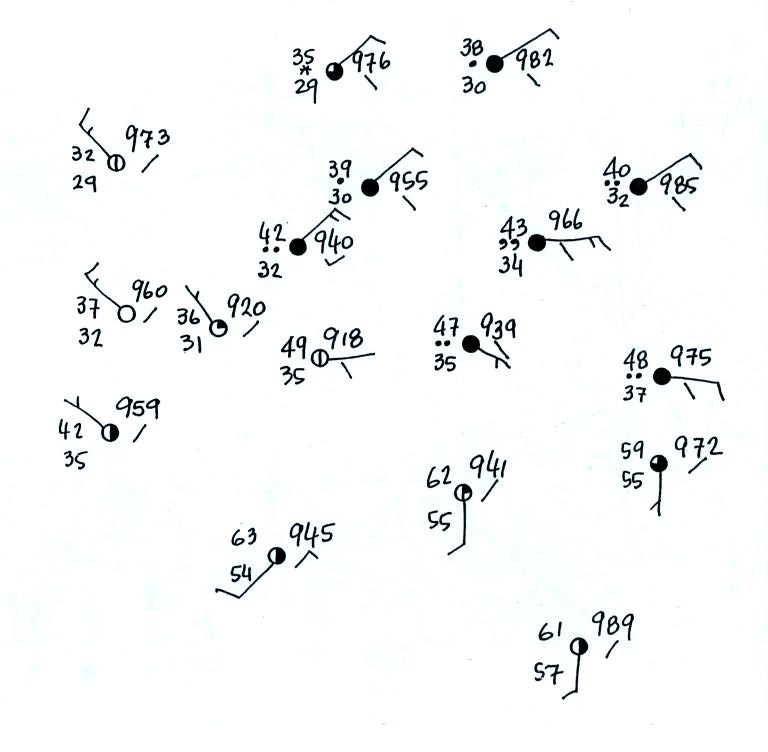

This is the map we will be working with (see p. 149b in the ClassNotes).  It's worth pausing and noting that you really can't make any sense out of this jumble of weather data at this point.

Step #1
We'll start by drawing some isobars to map out the pressure pattern.  A partial list of allowed isobars is shown at the right side of the map above (increments of 4 mb starting at 1000 mb).



We've located located the highest and lowest pressure values on the map.  Then we choose allowed isobar values that fall between these limits.  In this case we'll need to draw 992 mb and 996 mb isobars.

Here's the map with color coded pressures.  Pressures less than 992 mb are purple, pressures between 992 and 996 mb are blue, and pressures greater than 996 mb are green.



Note that station B has a pressure of exactly 992.0 mb, the 992 mb isobar will go through that station.  The 996 mb isobar will go through station A because it has a pressure of exactly 996.0 mb.



Here's the map with the isobars drawn in.  On the map below we use colors to locate the warm and cooler air masses.

Step #2



The warm air mass has been colored in orange.  Cooler air east of the low pressure center is blue.  Can you see where the warm front should go?


Step #3
Here's the map with a warm front drawn in (the map was redrawn so that the edge of the warm (orange) air mass would coincide with the warm front).





The change in wind directions was probably more noticeable that the temperature change.  Most of the cloud outlined in green are probably being produced by the warm front.  You can see how more extensive cloud coverage is with a warm front.

Step #4
Two of the stations near the right edge of the picture and on opposite sides of the front are redrawn below.



The station north of the front has cooler and drier air, winds are from the east, skies are overcast and light rain is falling.  The pressure is falling as the warm front approaches.  These are all things you'd expect to find ahead of a warm front.  Behind the front at the southern station pressure is rising, the air is warmer and moister, winds have shifted to the south and the skies are starting to clear.

In this case there is a Step #5
Have a look at the left, western, side of the map.  There's pretty good evidence of a cold front.



There's a big temperature change (low 60s to low 40s and 30s) and a very noticeable wind shift (SW ahead of the cold front and NW behind).

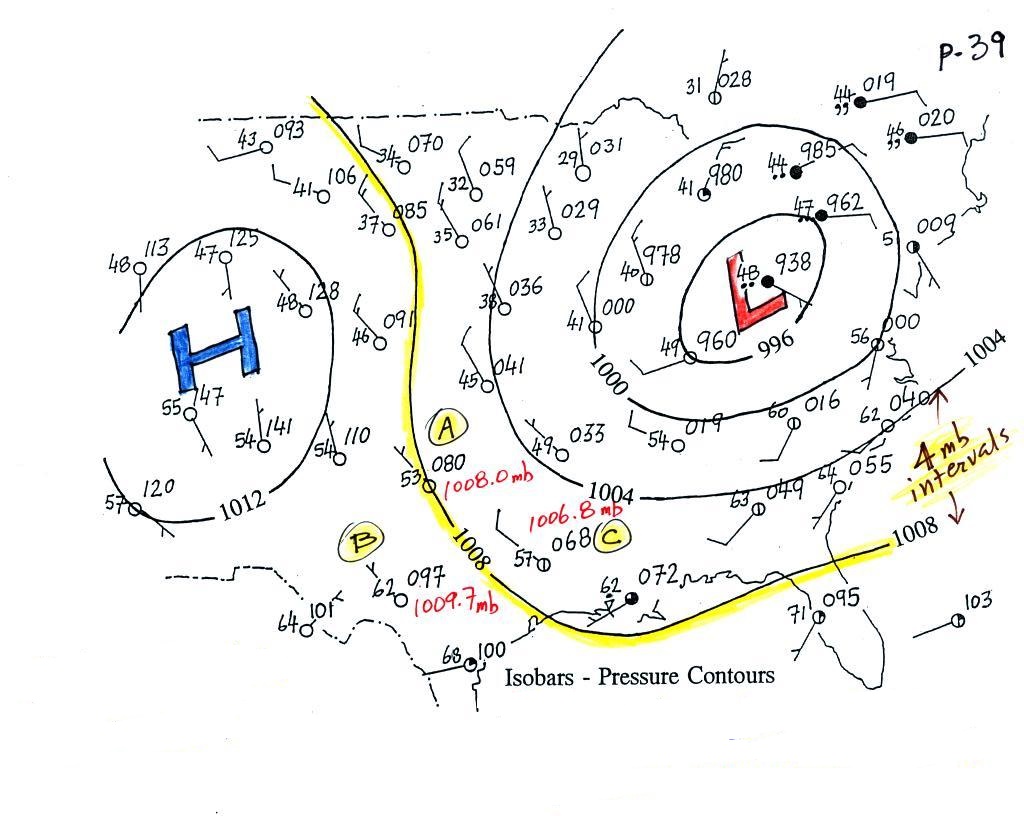

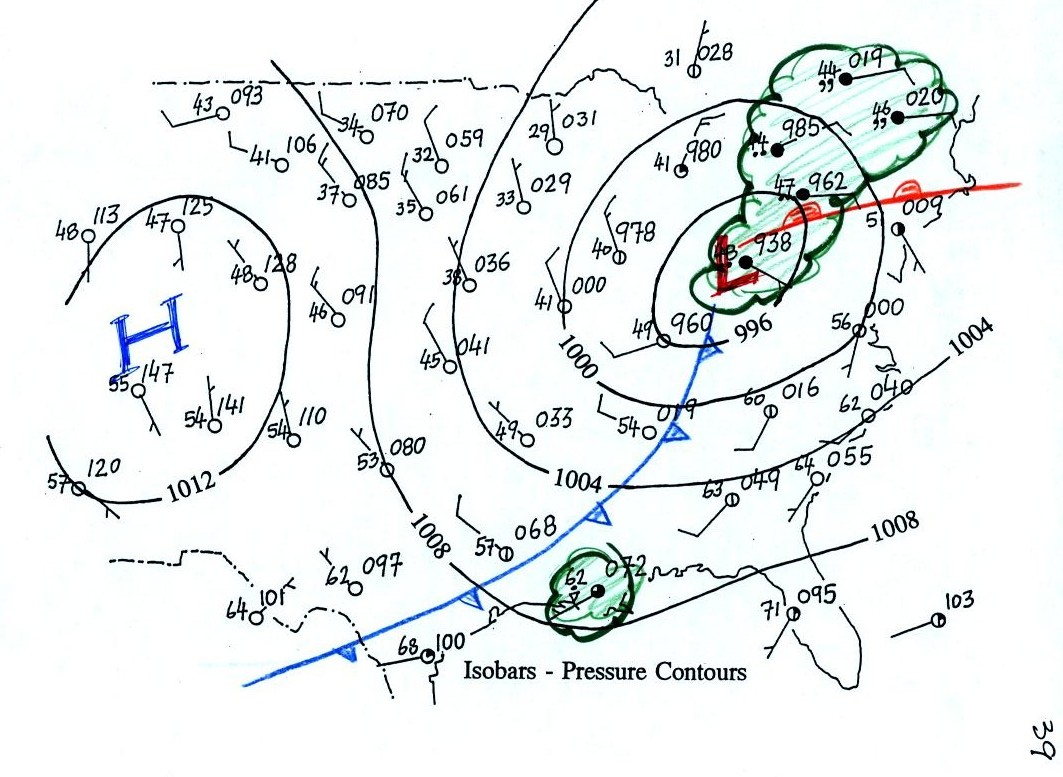

We need to go back to the figure where this section on surface weather maps all began.




After learning how weather data are plotted on a map using the station model notation we found that the data, by themselves, were not enough to really be able to say what was causing the cloudy, rainy weather in the NE and along the Gulf Coast.




We added some isobars to reveal the pressure pattern and to locate large centers of high and low pressure.  Winds converging into the center of low pressure cause air to rise and might be part of the explanation for the unsettled weather in the NE.  That would explain the rain shower along the Gulf Coast however.





Now we've added cold and warm fronts to the picture.  The approaching cold front is almost certainly the cause of the shower along the Gulf Coast.  The clouds in the NE are probably mostly being produced by the warm front.


None of the following was covered in class.

Up to this point we've been learning about surface weather maps.  Maps showing conditions at various altitudes above the ground are also drawn.  Upper level conditions can affect the development and movement of surface features (and vice versa).

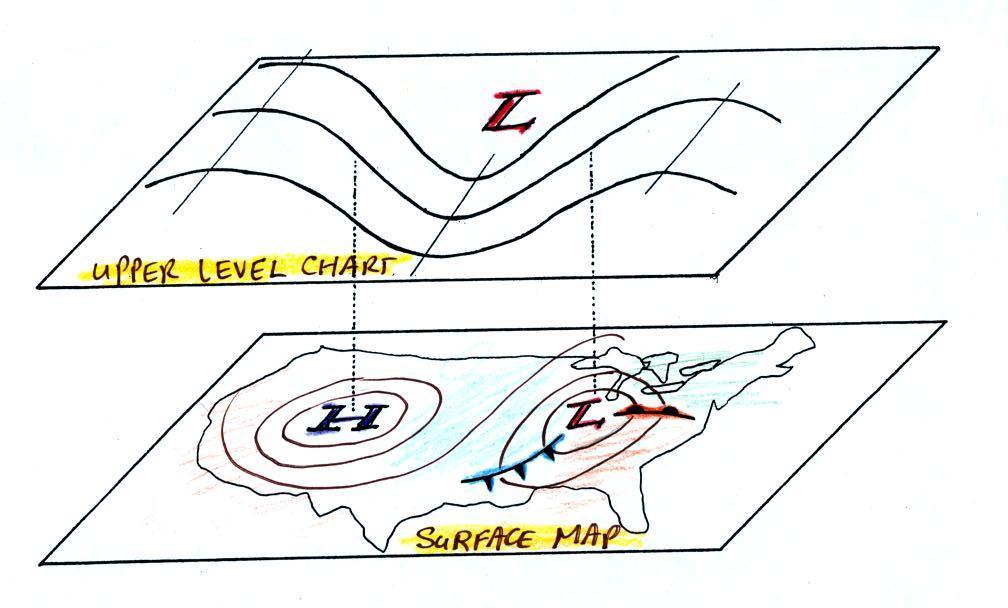

You'll find this picture on p. 41 in the ClassNotes.  First the overall appearance of an upper level map is somewhat different from a surface weather map.  The pattern on a surface map can be complex and you generally find circular (more or less) centers of high and low pressure (see the bottom portion of the figure below).  You can also find closed high and low pressure centers at upper levels, but mostly you find a relatively simple wavy pattern like is shown on the upper portion of the figure below (sort of a 3-dimensional view).

I left you with an assignment.  You should read Upper Level Charts pt. 1.  There you'll learn about the 3 most basic features on upper level charts.  I am currently working on an upper level charts Optional Assignment.  The assignment will require that you read Upper Level Charts pt. 2 and Upper Level Charts pt. 3.  The Optional Assignment should appear online sometime before the weekend (I'll mention it in class next Tuesday, it will most likely be due Tue., Oct. 14).
