Acid Rain Demonstration
click here to download this in a more printer friendly Microsoft WORD format

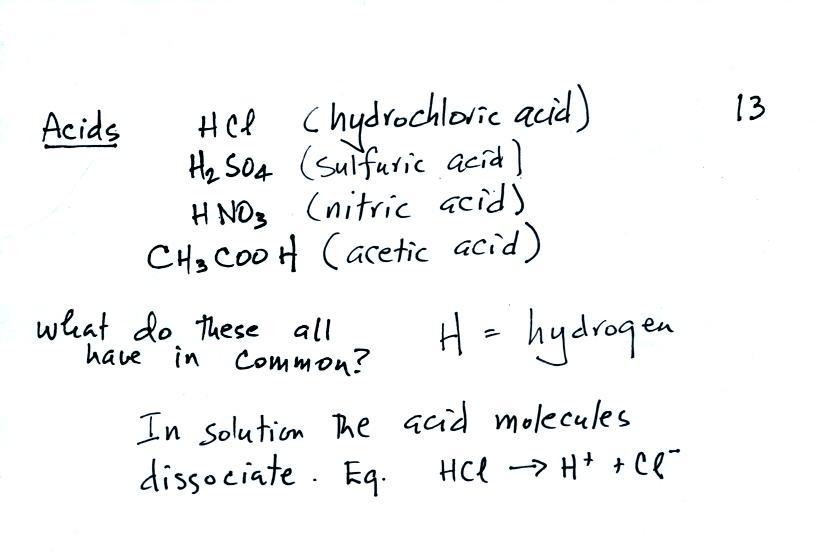

Some common acids are listed below.  In solution the acid molecules dissociate (split).  The presence of H+ ions is what makes these materials acids.

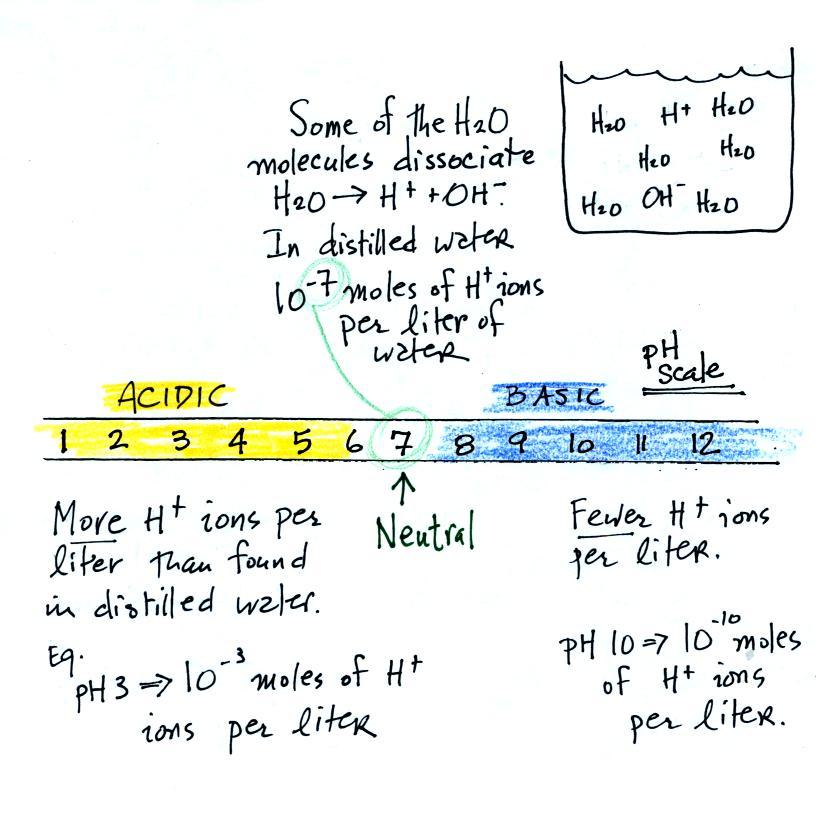

Actually for a solution to be acidic it must have an H+ ion concentration that is greater than the H+ ion concentration found in distilled water.  The H+ ion concentration in pure water is 10-7 moles of H+ ions per liter of water.  We often use the pH scale to measure acid concentration.  An H+ ion concentration of 10-7 moles/liter corresponds to pH 7.

A basic solution will have an H+ ion concentration that is lower than found in pure water.

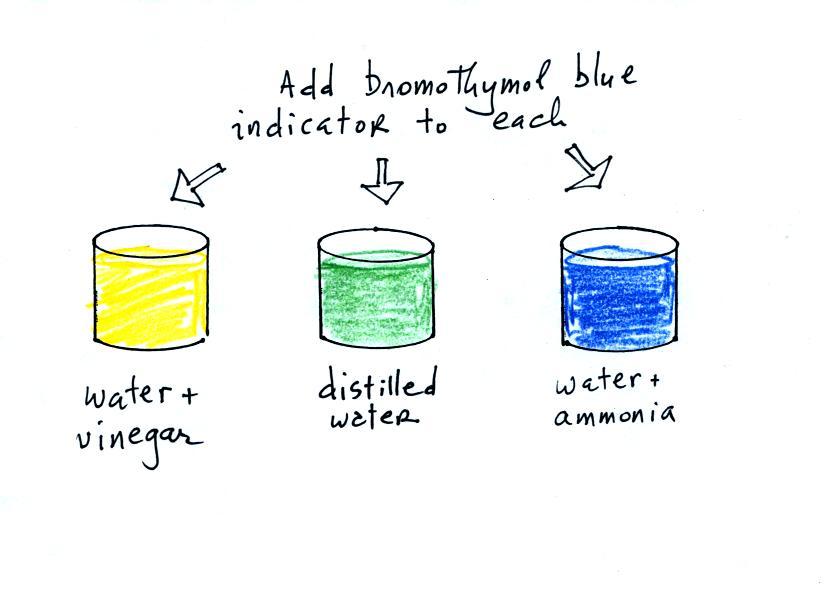

Now we can proceed to the demonstration.  We will start with three 1000 mL beakers.  They have all been filled with distilled water.  Some vinegar (contains acetic acid) has been added to the left beaker. Some ammonia (a base) has been added to the right beaker.

Then we add some bromothymol blue color indicator solution to all three beakers.  Bromothymol blue has the amazing property of changing color depending on whether it is mixed with an acid or a base.

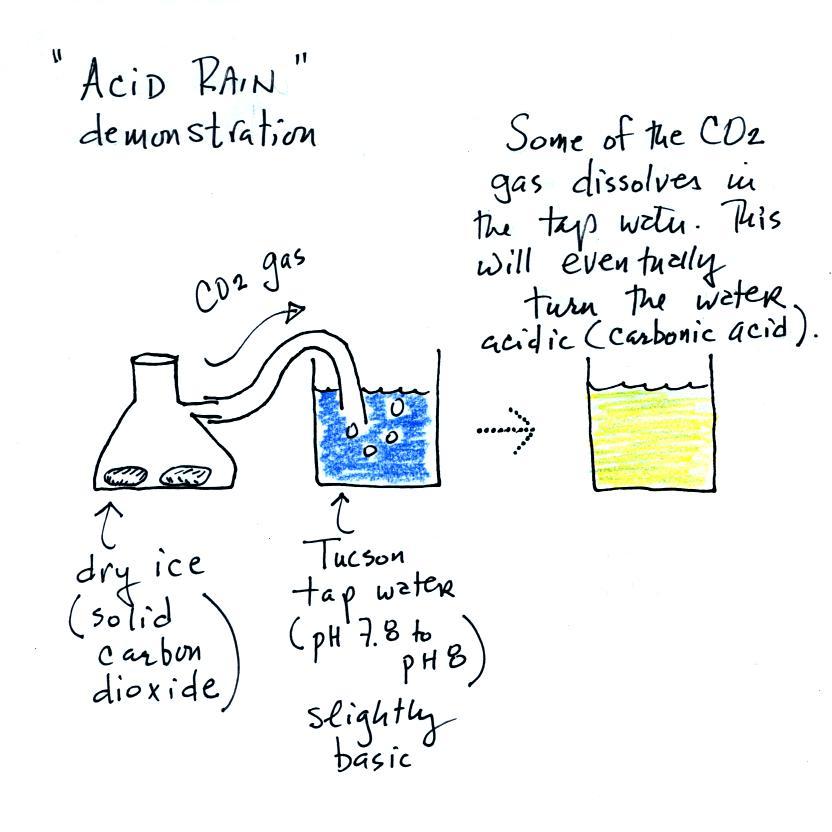

We add some Tucson tap water to a large 2000 mL beaker.  Tucson tap water is slightly basic.  So it turns blue when we add some bromothymol blue to it.  A few small pieces of dry ice are put into a flask.  We close the flask with a stopper.  The end of a piece of tubing connected to the flask is immersed in the tap water.

Dry ice sublimates.  It turns directly from solid to ice (ordinary ice melts and turns from solid to liquid).  The gaseous CO2 is invisible but you can tell it is there because of the bubbles in the tap water.  Some of the CO2 dissolves as it bubbles through the water and slowly turns the water acidic.  You can tell that this is occurring because the bromothymol blue indicator turns from deep blue to green and eventually to yellow.

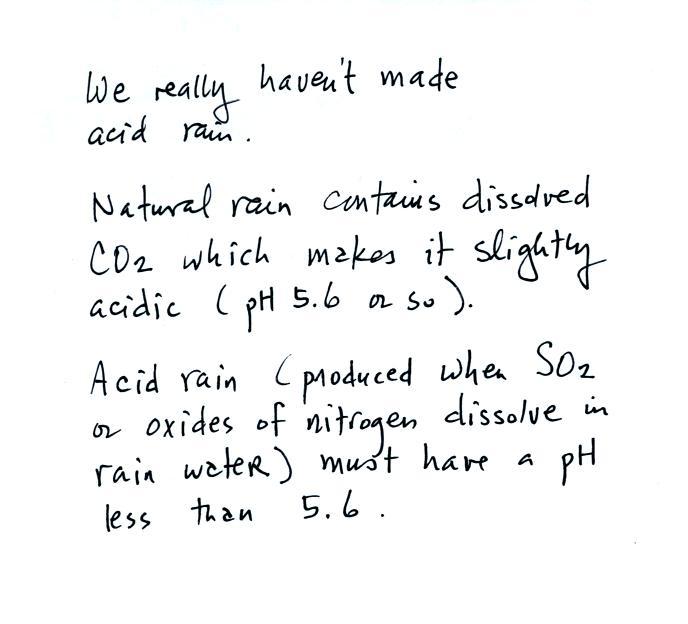

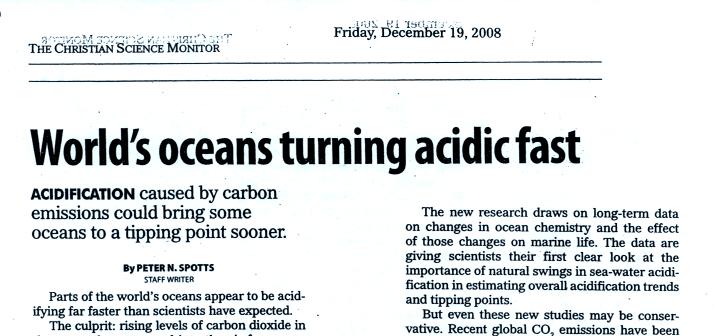

While we didn't actually produce acid rain, there is concern that increasing atmospheric concentrations of carbon dioxide will dissolve and acidify the world's oceans.  This is discussed in the following article from The Christian Science Monitor.  You can download a copy of the article here.




The main concern over increasing atmospheric carbon dioxide concentrations is global warming from enhancement of the greenhouse effect.  We will discuss this topic in a few weeks.
