The 1S1P reports on the Seasons have been graded and were returned
in class today. We're waiting on just the 2nd half of the Ozone
reports (last names Me - Z) and Assignment #1 will be history.
That means it's time for Assignment
#2. You can write
0, 1, or 2 reports. If you haven't written any 1S1P reports yet I
would suggest you do two reports. There will be a 3rd assignment
at some point and at least one more bonus assignment.
The Experiment #2 reports will be returned in class next Tuesday
together with, hopefully, midterm grade summaries.
Nine sets of Experiment #4 materials were
brought to class today. If you haven't done or aren't currently
working on some kind of report (experiment, scientific paper, book) you
should check with me. It is time to get started.
There are two outstanding Optional Assignments.
The
Controls of
Temperature assignment and Humidity assignment are both due at the
start of class next Tuesday.
We spend maybe 15 minutes looking at why there is an upper limit
to the amount of water
vapor that can be found in air and why that limit depends on
temperature.
The first thing
we need to realize is that warm water will
evaporate more rapidly than cool water. You probably know that
already. If a cup of iced tea were set next to a cup of hot tea
you probably be able to tell which was which by just looking at
them. You wouldn't need to touch or taste the tea or look for ice
cubes in the iced tea.
You might notice that one of the
cups of tea was steaming (the cup on the right above). This would
be the hot tea. You're not actually seeing water vapor.
Rather water vapor is evaporating so quickly that it is saturating the
air above. The air is cooler than the water and the air isn't
able to accomodate the water vapor that is evaporating into it.
The excess water vapor condenses and forms a cloud (of steam).
That's what
you see.
Now we'll redraw the picture and cover both cups so that water
vapor can begin to buildup in the air above the water in both
cups.
Arrows represent the different rates of evaporation. One
arrow is shown evaporating from the cup of cold water. The warmer
water at right is evaporating 3 times more rapidly. We've
arbitrarily assigned rates of evaporation of 10 and 30 to the water in
the two cups.
Now the second part
to understanding saturation.
Water vapor will start to buildup in the air above each cup. And,
even though it has just evaporated, some of the water vapor will
condense and rejoin the water at the bottom of each cup. Let's
assume that 1% of the water vapor molecules will condense.
The water vapor concentration in each glass will increase until it
reaches a point where
water evaporation rate = water
vapor condensation rate
for the cup of cold water the
evaporation rate is 10
10 = 0.01 x water vapor
concentration
The 0.01 is 1% expressed in decimal form. Solving
this
equation
gives you a water vapor concentration of 1000. The
air is saturated when you reach this point and the RH = 100%.
The saturation water vapor concentration in the air in the warm
cup would be 3000. And again the relative humidity would be
100%. Note that the rates of evaporation and condensation are
equal in both cases.
The fact that the rates of evaporation and condensation are equal when
air is saturated (RH = 100%) is something we'll be using later when we

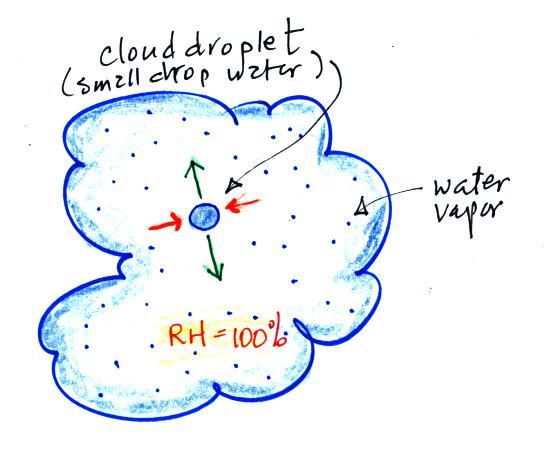

study the formation of precipitation. Here's a picture of how
that would look inside a cloud.
The air inside the cloud is saturated. The rate of
evaporation from the cloud droplet (2 green arrows) is balanced by an
equal rate of condensation (2 orange arrows). The RH =
100%. The cloud droplet won't grow any bigger or get any smaller.
Here's something to test your understanding of this material.
What information can you add to this picture? Is the water in one
of the glasses warmer than the other? Is there more water vapor
in the air in one of the glasses than the other? Is the relative
humidity in each glass more than 100%, less than 100% or is it equal to
100%. The rates of evaporation and condensation aren't equal in
either glass, so the pictures will change with time. What will
the glasses look once they have reached equilibrium? Think about
this for a while and then click here for the answers
and some explanation.
Next we had a couple of humidity example problems to finish.

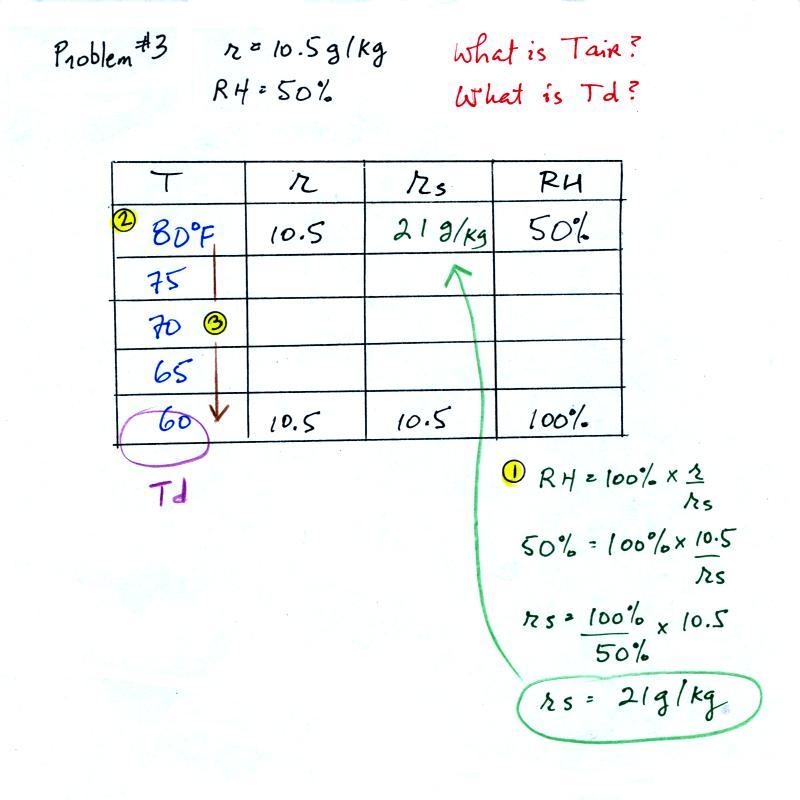

You're given the mixing ratio (10.5) and the relative humidity
(50). The units are g/kg and %. You need to
figure
out the air temperature and the dew point temperature. Here's
the
play by
play solution to the question
(1) The air contains 10.5 g/kg of water vapor, this is 50%,
half, of what the air
could potentially hold. So the air's capacity, the saturation
mixing ratio must be 21 g/kg (you can either do this in your head or
use the RH equation following the steps shown above).
(2) Once you know the saturation mixing
ratio you can look up the air temperature in a table (80 F air has a
saturation mixing ratio of 21)
(3) Then you
imagine cooling the air until the RH becomes 100%. This occurs at
60 F. The dew point is 60 F.
Example 4
Probably the most difficult problem of the bunch. But one of the
things we said about dew point is that it has the same job as mixing
ratio - it gives you an idea of the actual amount of water vapor in the
air. This problem will show that if you know the dew point, you
can quickly figure out the mixing ratio. Knowing the dew point is
equivalent to knowing the mixing ratio.

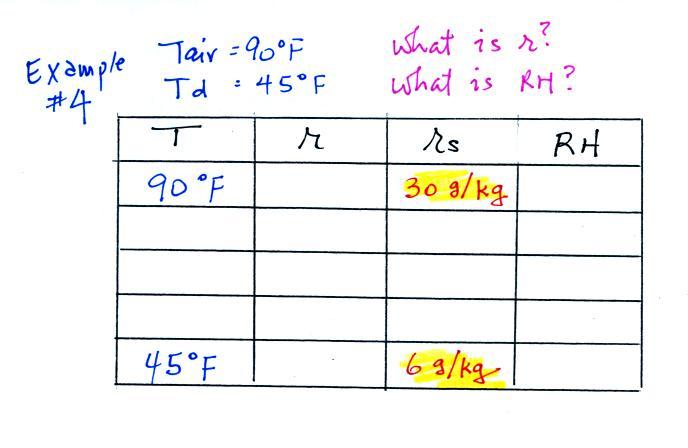

Here's what we ended up with in class, we
were given the air temperature and the dew point temperature. We
were supposed to figure out the mixing ratio and the relative
humidity.
We enter the two temperatures onto a chart and look up the
saturation
mixing ratio for each.

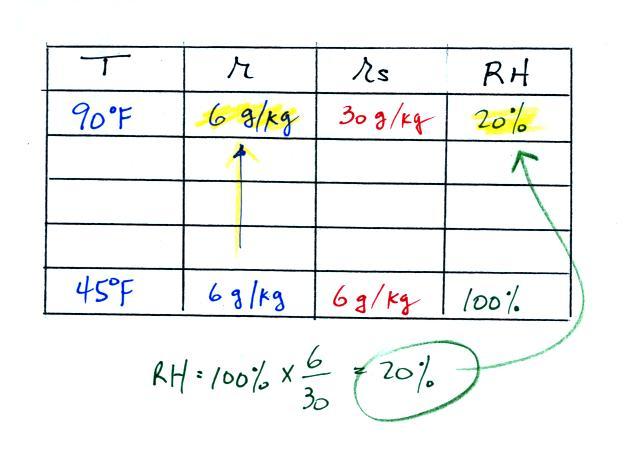

We ignore the fact that we don't know the mixing
ratio. We do know that if we cool the 90 F air to 45 F the RH
will
become
100%. We can set the mixing ratio equal to the value of the
saturation mixing ratio at 45 F, 6 g/kg.
Remember back to the three earlier examples. When we
cooled air
to the the dew point, the mixing ratio didn't change. So the
mixing ratio must have been 6 all along. Once we know the
mixing ratio in the 90 F air it is a simple matter to calculate the
relative humidity, 20%.
Here's a list of some of the important facts and properties of the
4 humidity variables that we have been talking about. This list wasn't
shown in class.
Now a potpourri of humidity topics that make use of some of the
humidity concepts that we have learned about.
The figure below is on p.
87 in the photocopied ClassNotes. It explains how you can dry
moist air.
At Point 1 we start with some 90 F air with a relative
humidity of 25%, fairly dry air. We imagine cooling this air to
the dew point temperature where the relative humidity would reach 100%
and a cloud would form (Pt. 2 in the figure above).
Then we continue to cool the air below the dew
point, to
30 F. Air that is cooled below the dew point finds itself with
more water vapor than it can contain. The excess moisture must
condense (we will assume it falls out of the air as rain or
snow). When air reaches 30 F it contains 3 g/kg, less than half
the
moisture that it originally did (7.5 g/kg). The air is being
warmed back up to 90 F along Path 4. As it warms the mixing ratio
remains constant. At Point 5, the air
now
has a RH of only 10%.
Drying moist air is very much like wringing moisture from a wet
sponge.
You start to
squeeze the sponge and it gets smaller. That's like cooling the
air and reducing the saturation mixing ratio, the air's capacity for
water vapor. At first squeezing the sponge doesn't cause anything
to happen (that's like cooling
the air, the mixing ratio stays constant as long as the air doesn't
lose any water vapor). Eventually water will start to drop from
the sponge (with air this is what happens when you reach the dew point
and continue to cool the air below the dew point). Then you let
go of the sponge and let it expand back
to its orignal shape and size (the air warms back to its original
temperature). The sponge (and the air) will be drier than when
you started.
This sort of process ("squeezing" water vapor out of moist air by
cooling the air below its dew point) happens all the time. Here
are a couple of examples (p. 87 again)
In the
winter cold air is brought inside your house or apartment and
warmed. Imagine 30 F air with a RH of 100% (this is a best case
scenario, the cold winter air usually has a lower dew point and is
drier). Bringing the air inside and warming it will cause the RH to
drop from 100% to 20%.. Air indoors during the winter is often
very dry. This can cause chapped skin, can irritate nasal
passages, and cause cat's fur to become charged with static electricity.
The air in an
airplane comes from outside the plane. The air outside the plane
can be very cold (-60 F perhaps) and contains very little water
vapor (even if the -60 F air is saturated it would contain essentially
no water vapor). When brought inside and warmed to a
comfortable
temperature, the RH of the air in the plane will be very close
0%.
Passengers often complain of becoming dehydrated on long airplane
flights. The plane's ventilation system probably adds moisture to
the
air so that it doesn't get that dry.

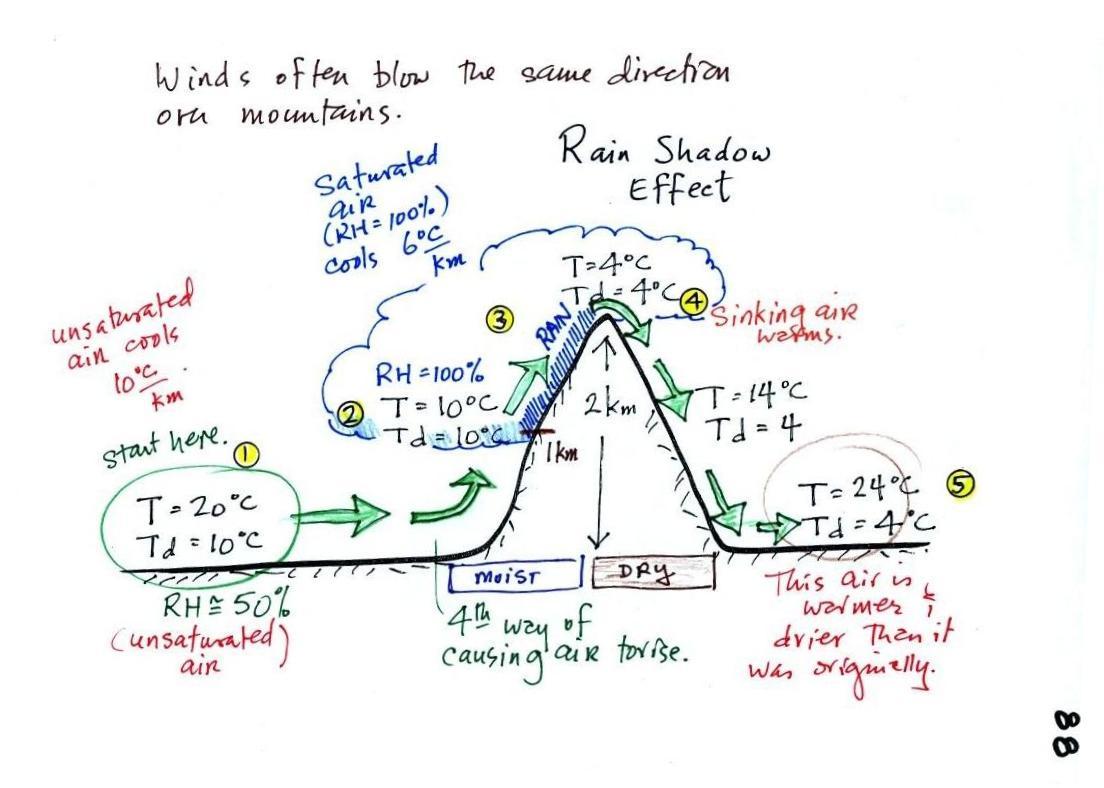

Next a much more important example of drying moist air (see p. 88
in the photocopied ClassNotes).
We start with some moist but unsaturated air (the RH is
about 50%) at Point 1 (the air and dew point temperatures would need to
be equal in
order for the air to be saturated).
As
it
is
moving
toward
the
right the air runs into a mountain and
starts to rise. Rising air expands and
cools. Unsaturated air
cools 10 C for every kilometer of altitude gain.
This is known as the dry adiabatic lapse rate. So after rising 1
km
the air will cool to 10 C which is the dew point.
The air becomes saturated at Point 2 (the air temperature and the dew
point are both 10 C). Would you be able to
tell if you were outdoors looking at the mountain? Yes, you would
see a cloud
appear.
Now that the RH = 100%, the saturated air cools at a slower rate than
unsaturated air (condensation of water vapor releases latent heat
energy inside the rising volume of air, this warming partly offsets the
cooling caused by
expansion). We'll use a value of 6 C/km (an average
value). The air cools from 10 C to 4
C in next kilometer up to the top of the mountain. Because the
air is being cooled below its dew point at Point 3, some of the water
vapor will condense and fall to the ground as rain. Moisture is
being removed from the air and the value of the mixing ratio (and the
dew point temperature) decreases.
At Point 4 the air starts back down the right side of the
mountain. Sinking air is compressed and warms. As soon as
the air starts to
sink and warm, the relative humidity drops below 100% and the cloud
disappears. The sinking unsaturated air will warm at the 10 C/km
rate.
At Point 5 the air ends up warmer (24 C vs 20 C) and drier (Td =
4 C vs Td = 10 C) than when it started out. The downwind side of
the mountain is referred to as a "rain shadow" because rain is less
likely there than on the upwind side of the mountain. Rain is
less likely because the air is sinking and because the air on the
downwind side is drier than it was on the upslope side.
Here's the best picture of the rain shadow effect I could find
(here's the source
of the
picture). I
didn't
show
this picture in class.
The Himalayan mountains stretch across the lower left 1/3 of the
picture. The land below and to the left of the mountains appears
somewhat green in the picture. This is because moist air moving
from lower
left toward the upper right leaves most of its moisture on this side of
the mountain range. The upper right 2/3rds of the picture, the
Tibetan plateau, is in the rain shadow and appears very dry and brown
in the
photograph.
Most of the year the air that arrives in Arizona comes from the west,
from the Pacific
Ocean (this changes in the summer). It
usually isn't very moist by the time it reaches Arizona because it has
travelled up and over the
Sierra Nevada mountains in
California and the Sierra Madre mountains further south in
Mexico. The air loses much of its moisture on the western slopes
of those mountains. The eastern half of Oregon is drier than the
western half for the same reason. Air travels from the Pacific up
and over the
Cascade mountains. It loses a lot of its moisture on the upslope
(western) side of the mountains.
Next in
our mix of topics was measuring
humidity. One of the ways of measuring humidity is to use a sling
(swing might be more descriptive) psychrometer.
A sling
psychrometer consists of two thermometers mounted
side by side. One is an ordinary thermometer, the other is
covered with a wet piece of cloth. To
make a humidity measurement you swing the psychrometer around for a
minute or two and then read the temperatures from the two
thermometers. The difference between the dry and wet bulb
temperatures can be
used to determine relative humidity and dew point (you look up RH and
Td in a table, it's not something you can easily calculate).
You know I like to beat some concepts to death.
The figure shows what
will happen as you start to swing the wet bulb thermometer. Water
will begin to evaporate from the wet piece of cloth. The
amount
or
rate
of evaporation will depend on the water temperature(the
80
F
value
was
just
made
up
in
this
example).
Warm
water
evaporates
at
a higher rate than cool water.
The evaporation is shown as blue arrows because this will cool the
thermometer. The same thing would happen if you were to step out
of a swimming pool on a warm dry day, you would feel cold. Swamp
coolers would work well (too well sometimes) on a day like this.
The figure at upper left also shows one arrow of condensation.
The
amount or rate of condensation
depends on how much water vapor is
in the air surrounding the thermometer. In this case (low
relative humidity) there isn't much water vapor. The
condensation arrow is orange because the condensation will release
latent heat and warm the thermometer.
Because
there is more evaporation (4 arrows) than condensation (1
arrow) the wet bulb thermometer will drop.
The wet thermometer will cool but it
won't cool indefinitely. We
imagine that the wet bulb thermometer
has cooled to 60 F. Because the wet piece of cloth is cooler,
there is less or slower evaporation. The wet bulb thermometer
has cooled to
a temperature where the evaporation and condensation are in
balance. The thermometer won't cool any further.
You
would measure a large difference (20 F) between the dry and wet bulb
thermometers on a day like this when the air is relatively dry.
Here's the situation on a
moister day. There's enough moisture in the
air to provide 3 arrows of condensation.You wouldn't feel as cold if you stepped
out of a pool on a warm humid
day like this. Swamp coolers wouldn't provide much cooling on a
day like this.
The wet thermometer only cools a little bit before the rates of
evaporation and condensation are equal.
Here's a summary
A large difference between the dry and wet bulb temperatures
means the relative humidity is low.
A small difference means the RH is higher.
No difference (the bottom figure) means the relative humidity is
100%. Any evaporation from the wet thermometer is balanced by an
equal amount of condensation from the surrounding air.
A variety of things can happen when you cool air
to the dew point and
the relative humidity increases to 100%. Point 1
shows that when moist air next to the ground is cooled to
and
below the
dew point, water vapor condenses onto (or is deposited onto) the ground
or objects on the ground. This forms dew, frozen dew, and
frost.
Air above the ground can also be cooled to the dew point. When
that happens (Point 2 above) it is much easier for water vapor to
condense
onto
something rather than just forming a small droplet of pure
water. In air above the
ground water vapor condenses onto small
particles in the air called condensation nuclei. Both the
condensation nuclei and the small water
droplets that form on them are usually too small to be seen with the
naked eye. We can tell they are present (Point 3) because they
either scatter (haze or fog) or reflect (clouds) sunlight.
We'll learn a little bit about the formation of dew and frost
today. We look at condensation nuclei and the role they play in
cloud formation on Friday.

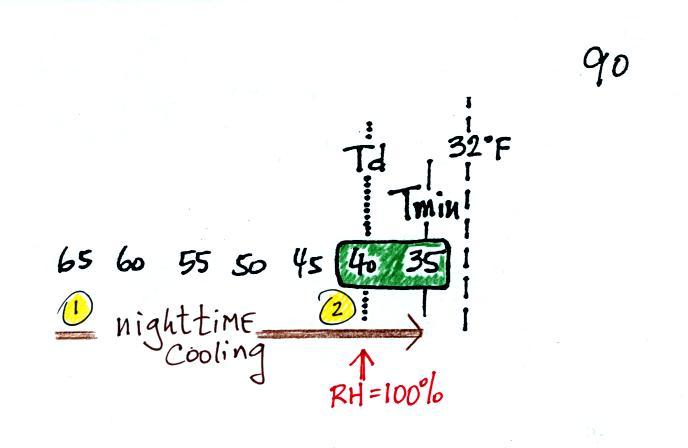

The following confusing figures are found on p. 90 in the photocopied
ClassNotes.
It might be a little hard to figure out what is being
illustrated
here. Point 1 is sometime in the early evening when the
temperature of the air at ground level is 65. During the course
of the coming night the air will cool to 35 F. When the air
temperature reaches 40
F, the dew point, the relative humidity reaches 100% and water vapor
begins to condense
onto the ground. You would find your newspaper
and your car covered with dew (water) the next morning.
The next night is similar except that the nighttime
minimum
temperature drops below freezing. Dew forms (condensation) and first
covers
everything on the ground with water. Then the water freezes and
turns to ice. This isn't frost, rather
frozen dew. Frozen dew is often thicker and harder to scrape off
your car windshield than frost.
Now the dew point and the nighttime minimum temperature are both
below
freezing. When the RH reaches 100% water vapor turns directly to
ice (deposition).
This
is
frost.
What happens on this night? Because the nighttime minimum
temperature never reaches the dew point and the RH never reaches 100%,
nothing would happen.
I've seen some textbooks refer to this as black frost but I don't like
to use that term. You have probably heard of black ice; you
might get the idea that black ice is like black frost and doesn't
really exist. But black ice does sometimes form on road surfaces
and is a very dangerous
driving hazard. Because it's hard to see you can hit it while
driving and easily lose control of your car.
